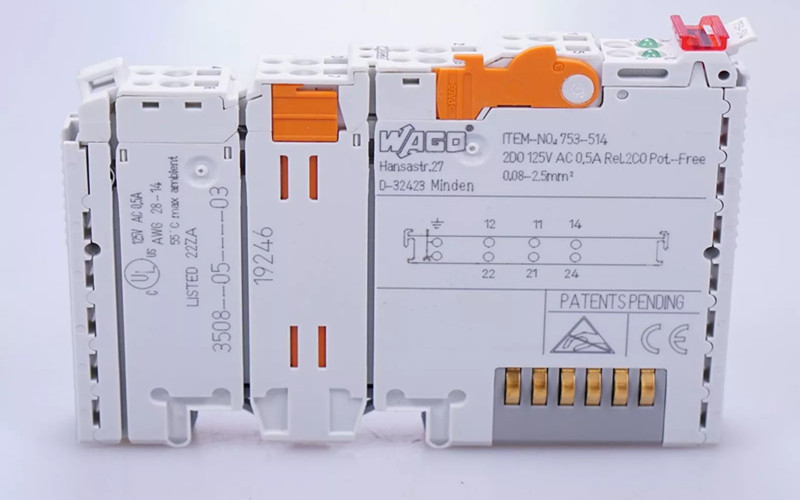

WAGO 753-514 2-Channel Relay Terminal Output AC 125V DC 30V

General Description:

The WAGO 753-514 is a 2-channel relay terminal designed for industrial automation and control systems. It supports switching AC voltages up to 125V and DC voltages up to 30V, making it suitable for various applications, including controlling relays, contactors, and small actuators. Its compact design and push-in connection technology ensure easy installation and efficient use of space in control cabinets.

Technical Specifications of 753-514 :

- Channels: 2

- Output Type: Relay (AC/DC)

- Voltage Rating: 125V AC / 30V DC

- Current Rating: 2A per channel

- Connection Technology: Push-in

- Operating Temperature: -25°C to +60°C

- Wire Size: 0.08 to 2.5 mm² (AWG 28-12)

- Dimensions: 7.5 mm x 100 mm x 12 mm

- Weight: Approx. 20 g

Features of 753-514:

- Versatile AC/DC switching capability for flexible applications

- Compact design for space-saving installation

- Push-in connection technology for quick and secure wiring

- Reliable performance in industrial environments

- LED indicators for channel status monitoring

Applications of 753-514:

- Industrial automation and control systems

- Relay and contactor control

- Machine and process automation

- Building automation and energy management

Installation Procedure (Step by Step):

1. Mounting: Secure the WAGO 753-514 terminal onto a DIN rail using the mounting clip.

2. Wiring: Strip the wire ends to the recommended length (7-9 mm). Insert the wires into the push-in terminals until they click into place.

3. Power Connection: Connect the AC/DC power supply (up to 125V AC or 30V DC) to the designated terminals.

4. Output Connection: Connect the output channels to the controlled devices (e.g., relays, contactors).

5. Verification: Power on the system and check the LED indicators to ensure proper operation.

Related Part Numbers:

- 753-513: 1-Channel Relay Terminal (AC/DC)

- 753-515: 4-Channel Relay Terminal (AC/DC)

- 750-600: Power Supply Module

- 750-430: Digital Input Module
