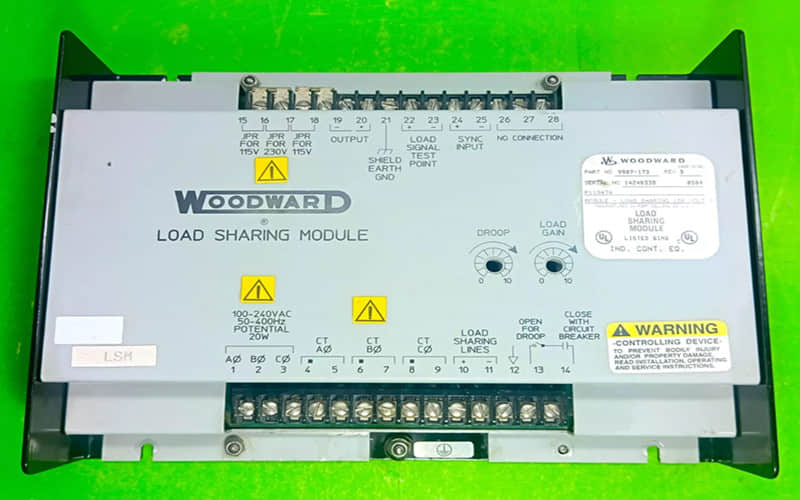

Woodward 9907-173 Load Sharing Module
1.General Description:
The Woodward 9907-173 Load Sharing Module is a modern control device. It helps manage load sharing and synchronization in systems with multiple generators. It ensures balanced power distribution across generators, optimizing performance and preventing overloads. Ideal for industrial, commercial, and marine applications, this module enhances system reliability and efficiency.
2.Technical Specifications of 9907-173:
- Input Voltage: 18-35 VDC
- Operating Temperature: -40°C to +85°C
- Communication Interface: CAN bus, RS-232, or RS-485
- Load Sharing Accuracy: ±1% of rated load
- Dimensions: 6.5 x 4.5 x 1.5 inches
- Weight: 1.2 lbs
- Certifications: CE, UL, and marine compliance
3.Features:
- Advanced load-sharing and synchronization capabilities
- Wide operating voltage range for versatile applications
- Rugged construction for durability in harsh environments
- User-friendly interface for easy configuration and monitoring
- Compatibility with various communication protocols
4.Applications:
- Industrial power generation systems
- Marine propulsion and auxiliary power systems
- Commercial backup power systems
- Remote and off-grid power solutions
5.Installation Procedure:
1. Preparation: Ensure the power system is turned off, and all safety protocols are followed.
2. Mounting: Securely mount the 9907-173 module in a clean, dry, and vibration-free location.
3. Wiring: Connect the input power supply (18-35 VDC) to the designated terminals.
4. Communication Setup: Link the module to the generator control system using CAN bus, RS-232, or RS-485.
5. Configuration: Use the interface to set load-sharing parameters and synchronization settings.
6. Testing: Power on the system and verify proper load sharing and synchronization.
7. Final Check: Ensure all connections are secure and the module functions as expected.
6.Related Part Numbers of 9907-173:
- Woodward 9907-172 Load Sharing Module
- Woodward 9907-174 Load Sharing Module
