Protectwell Fire Alarm System Series PW300DSA: Technical Guide & Specifications

Overview

The Protectwell Fire Alarm System (featuring the advanced PW-300DSA Series and PROTECTWELL PW-300P smoke detectors) is engineered for early fire detection and reliable facility protection. Built with microprocessor-based technology, the protectwell fire alarm ecosystem ensures high sensitivity and stability across commercial, industrial, and residential environments.

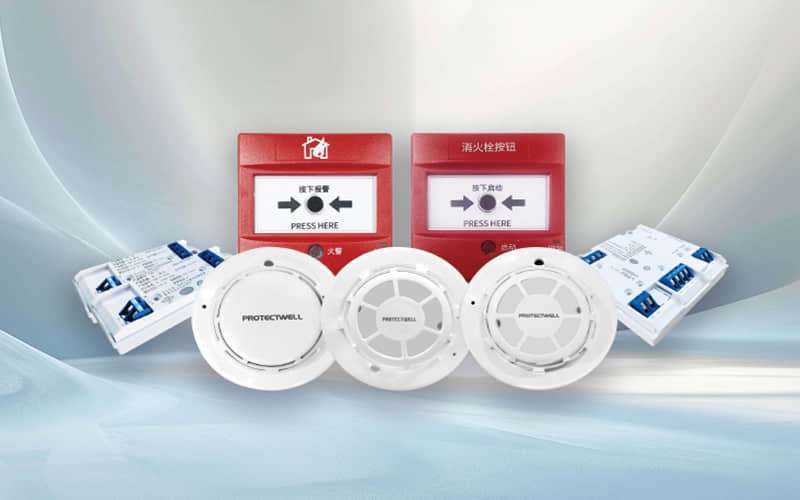

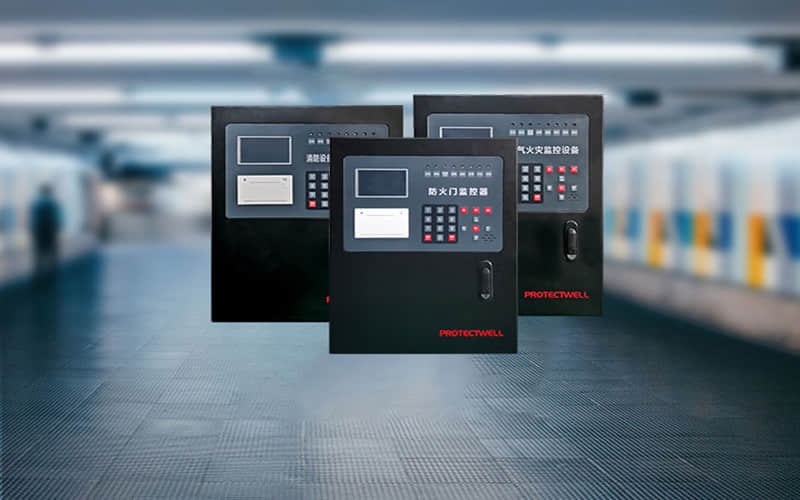

Integrating a protectwell intelligent touch-screen controller with low-profile detectors delivers a complete, compliant, and efficient solution for modern fire safety management.

System Benefits & Safety Ecosystem

• Early Detection: Deploying photoelectric smoke detectors like the PW-300DSA allows for rapid response times, minimizing property loss and operational downtime.

• Compliance & Training: Regular drills and adherence to safety standards help businesses reduce legal risks while fostering a secure workplace.

• Smart Diagnostics: Advanced sensor technology guarantees dependable activation during emergencies, supported by routine maintenance and testing protocols.

Technical Specifications & Part Numbers

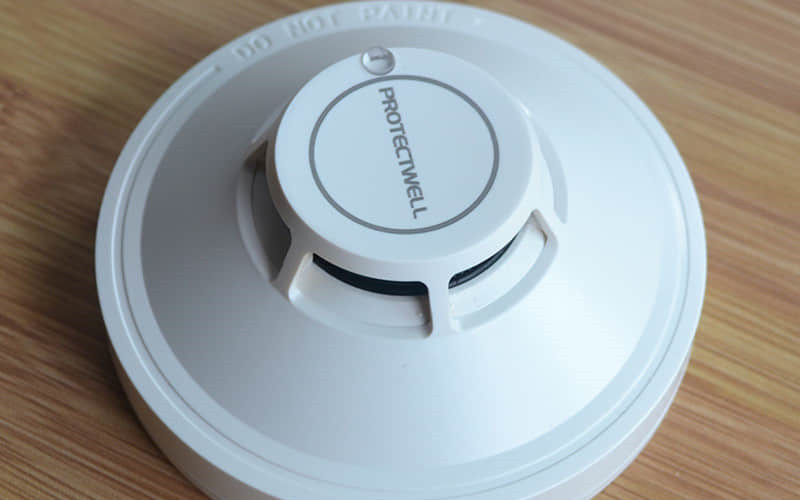

1. PW-300DSA – Intelligent Point-Type Photoelectric Smoke Detector

• Detection Type: Light-scattering photoelectric

• Power Supply: 17–28 VDC

• Current: 300 µA (standby), 1 mA (alarm)

• Operating Temperature: –10 °C to 55 °C

• Storage Temperature: –40 °C to 80 °C

• Housing Material: Flame-retardant white polycarbonate

• Weight: 97 g

• Dimensions: Ø 99.5 mm × H 40.5 mm

• Certifications: GB 4715-2005, EN54-7, CCCF, UL

2. VBS-28DP – Point-Type Photoelectric Smoke Detector

• Voltage: 15–32 VDC

• Monitoring Current: 300 µA @ 24V

• Alarm Current: 1.8 mA

• Operating Temperature: –10 °C to 55 °C

• Humidity: 5%–95% RH (non-condensing)

• Weight: ~74 g

• Dimensions: Ø 103 mm × H 44 mm

• Compliance: GB 4715-2005, CCC

3. PW-99P Detector

• Type: Smart photoelectric smoke detector

• Base Compatibility: Compatible with P601 bases

• Advanced Features: Electronic coding, drift compensation, adjustable sensitivity, self-diagnostic functions, and strong anti-interference.

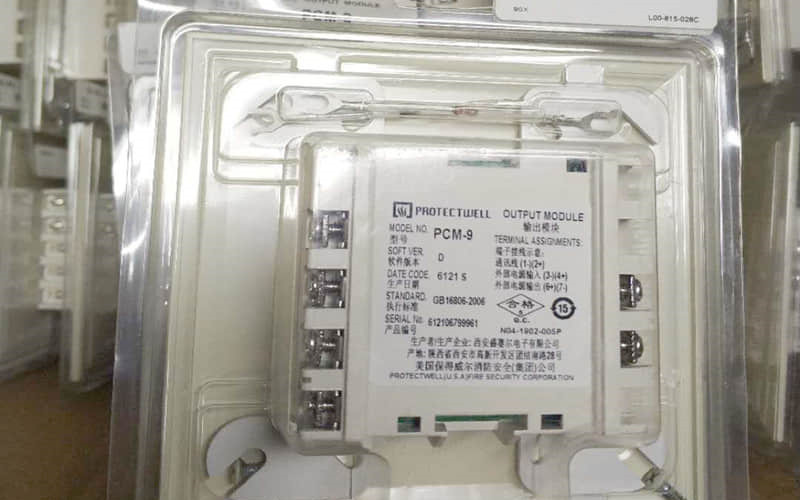

4. PMM-3P Interface Module

• Type: Conventional detector interface module

• Voltage: 15–32 VDC

• Max Current: 5.1 mA

• Avg Current: 270 µA

• End-of-Line Resistance: 3.9 kΩ

• Wiring Resistance: ≤25 Ω

• Dimensions: 11.43 × 10.16 × 3.17 cm

• Addressing: 0–159 (FlashScan), 01–99 (CLIP)

Industrial Applications

• Commercial office buildings and retail complexes requiring low-profile safety infrastructure.

• Industrial manufacturing plants needing robust, interference-resistant smoke detection.

• Residential complexes looking for compliant and reliable life-safety systems.
