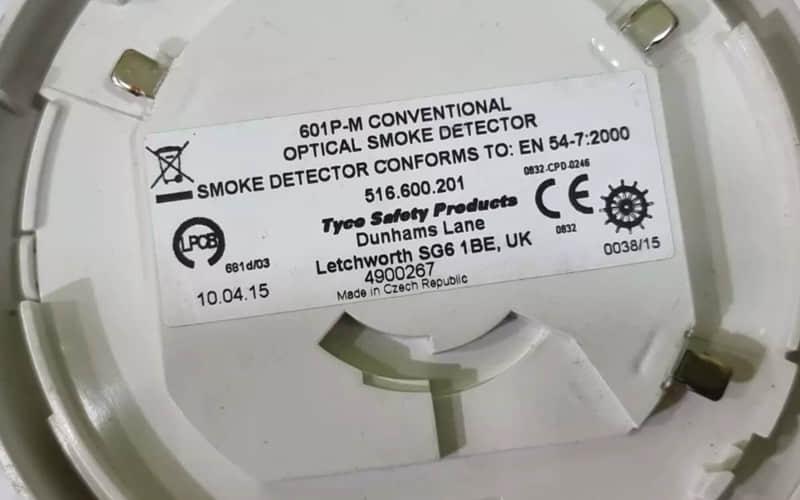

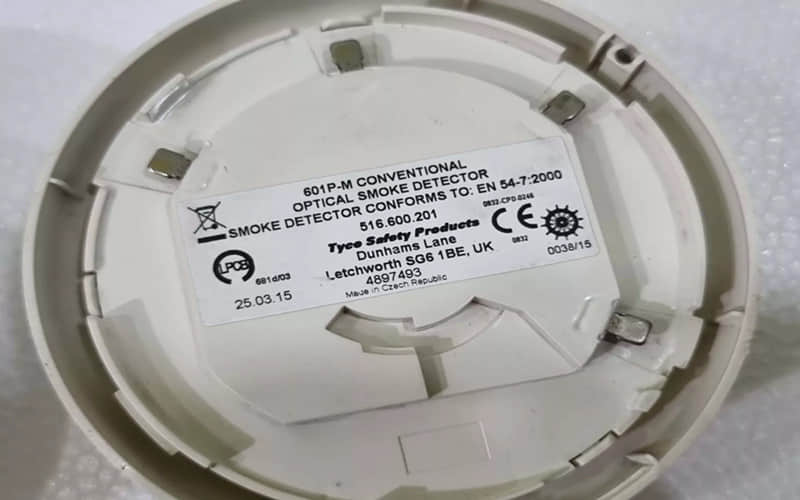

Tyco 601P-M Optical Smoke Detector
General Description
The Tyco 601P-M is a marine smoke detector. It is designed to find visible smoke from materials that smolder or burn slowly. This includes items like soft furnishings and plastic foam. It is particularly effective in areas prone to cable overheating, like electrical service zones. However, it is not designed for fast-burning fires that generate little visible smoke.
Technical Specifications of 601P-M
l Part Number: 516.600.201
l Operational Voltage: 10.5 Vdc to 33 Vdc
l Quiescent Current: 65 μA
l Temperature Range: -20°C to +70°C
l Relative Humidity: <95% RH Non-condensing
l Weight: 1 kg
Detailed Features of 601P-M
1. Asymmetrical Sampling Chamber: This innovative design minimizes false alarms by preventing small insects from triggering the detector.
Simplified Text
- Signal Processing Techniques: This helps detect smoke better. It sends infrared light pulses to a photodiode when smoke enters the chamber.
3. Rapid Installation Design: Simplifies the installation process, making it quicker and more efficient.
4. Polarity Independent Wiring: Reduces installation costs and complexities.
Applications of 601P-M
The Tyco 601P-M Optical Smoke Detector is ideal for various marine environments, including:
l Passenger vessels and ferries where passenger safety is paramount.
l Cargo ships that require reliable smoke detection in storage areas.
l Offshore platforms where electrical services are critical and prone to overheating.
l General commercial marine applications need compliance with safety regulations.
Installation:
To install the detector, first mount it on a compatible base (sold separately). Next, connect the wiring according to the instructions. Ensure it is placed in a location that can effectively detect smoke from potential fire sources.
Related Part Numbers:
Replacement for Tyco 601P-M: Tyco 711P Optical Detector (Part Number: 516.900.101)
