Benefits of the Allen-Bradley 1756 PA75 Power Supply

1. Overview of the Allen-Bradley 1756-PA75

The Allen-Bradley 1756-PA75 is a ControlLogix AC power supply from Rockwell Automation, designed for high performance and reliability in industrial automation systems. This industrial-grade power supply is part of the Allen-Bradley 1756 ControlLogix series. It provides all the regulated voltages needed for any ControlLogix® module to work in the chassis.

Knowing about the Allen-Bradley 1756-PA75 ControlLogix 85-265 VAC Power Supply is essential. This applies to both electrical engineers and procurement specialists. This knowledge helps ensure better performance, longer equipment life, and less downtime in critical applications.

The Allen-Bradley 1756-PA75, also called the 1756-PA75 B, is a reliable industrial power supply. It provides stable power to Allen-Bradley PLCs and machine control systems. Engineers specifically designed it for the ControlLogix platform, ensuring seamless integration and reliable operation.

2. Key Features of 1756-pa75 plcs/machine control from allen bradley

Here are some of the standout attributes of the Allen-Bradley 1756-PA75 Power Supply:

l Wide Input Voltage Range:

Operates from 85 to 265 V AC, making it compatible with a wide range of power sources worldwide. This wide range ensures the power supply remains stable even in regions with inconsistent grid voltages.

l Multiple Output Voltages:

It provides regulated outputs of 1.2 V DC, 3.3 V DC, 5 V DC, and 24 V DC. These outputs are essential for powering sensitive electronic parts. Stable output prevents voltage fluctuations that could damage automation equipment.

l Power Capacity:

This ControlLogix AC power supply has a total output power of 75 W. It efficiently supports heavy industrial tasks. It also keeps energy use low and operating costs down.

l Operating Temperature:

Works well from 0 °C to 60 °C. Suitable for many industrial settings, like factory floors and control rooms.

l Compact Design:

The Allen-Bradley 1756-PA75 is small, making it easy to install in control panels and ControlLogix racks. This design helps save important space.

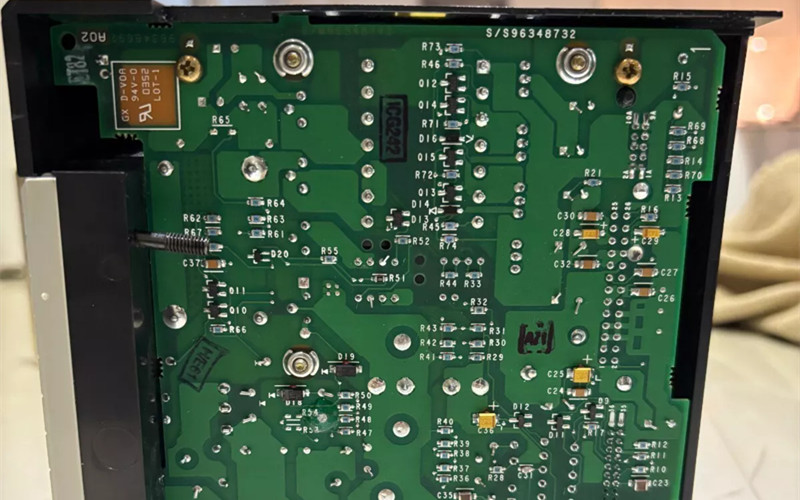

3. Specifications of allen bradley controllogix 1756-pa75

l Manufacturer: Rockwell Automation

l Model Numbers: Allen-Bradley 1756-PA75, Allen-Bradley 1756-PA75 B

l Product Type: ControlLogix Power Supply – AC Input

l Input Voltage Range: 85–265 V AC

l Input Frequency Range: 47–63 Hz

l Output Power: 75 W (maximum)

l Isolation Voltage: Reinforced insulation, type-tested at 3500 V DC

l Operating Temperature: 0–60 °C (32–140 °F)

l Dimensions: 140 × 112 × 145 mm (5.51 × 4.41 × 5.71 in.)

l Weight: Approx. 0.95 kg (2.10 lb)

l Current Capacity:

1.2 V DC @ 1.5 A

3.3 V DC @ 4 A

5.1 V DC @ 10 A

24 V DC @ 2.8 A

4. Advantages of Using the Allen-Bradley 1756-PA75

4.1 Reliability and Performance

Engineers designed the Allen-Bradley 1756-PA75 for stable, quiet output. It also has excellent heat management, maintaining high efficiency across different loads. It includes built-in surge suppression and overload protection, ensuring safe operation in harsh industrial environments.

It offers redundancy support and meets global safety standards. This ensures reliable uptime in important PLC and machine control systems.

4.2 Redundant Power Supply Option

The 1756-PA75 supports backup setups with modules like the 1756-PSCA or 1756-PSCB. This enables automatic failover in the event of a power supply issue. This ensures uninterrupted operation, making it ideal for continuous-process industries. Redundancy also simplifies maintenance, allowing hot-swap replacement without shutting down the system.

4.3 Integration with ControlLogix Systems

The Allen-Bradley 1756-PA75 integrates seamlessly into ControlLogix backplanes, supplying regulated power to the entire chassis. Its direct-fit design makes installation quick.

It works with Rockwell Automation Studio 5000 or RSLogix 5000. This allows for real-time monitoring, diagnostics, and configuration. This compatibility enhances overall system reliability, scalability, and efficiency.

5. allen bradley 1756 pa75 Datasheet and User Manual

The official datasheet provides electrical characteristics, efficiency ratings, and safety certifications for the Allen-Bradley 1756-PA75. Understanding these parameters ensures proper selection and configuration within your automation system.

5.1 Mechanical Specifications

Physical dimensions and mounting data ensure proper fit within ControlLogix chassis.

Ideal for compact installations where space efficiency is essential.

5.2 Certifications and Compliance

The Allen-Bradley 1756-PA75 complies with major international standards, ensuring electrical safety, EMC compatibility, and environmental durability. Compliance assures safe operation across global installations.

6. Wiring Information

6.1 Terminal Descriptions

TerminalDescriptionNotesL1High-side line voltageConnect to high-side line of power sourceL2/NLow-side line voltageConnect to neutral line of power sourceThird TerminalNot usedNot applicable for 1756-PA75

6.2 Wiring Steps

Ground Connection: Use 2.1 mm² (14 AWG) copper wire; torque = 12 in-lbs (1.4 Nm).

Power Wires: Use #14 AWG 75 °C copper wire. Secure each terminal properly (L1, L2/N).

6.3 Important Notes

Always disconnect power before wiring.

Keep wiring as short as possible to minimize resistance.

6.4 Installation Best Practices

Ensure proper grounding and correct wire gauge.

Verify that the input voltage matches the supply range (85–265 V AC).

Avoid overloading beyond rated output capacity.

Clearly label connections for maintenance and troubleshooting.

Test the unit after installation to confirm stable power delivery.

7. Comparing the 1756-PA75 and 1756-PA75B

The Allen-Bradley 1756-PA75 and 1756-PA75B are part of the ControlLogix power supply family. They have similar specifications. Both models accept 85–265 V AC input. They also provide a 5 V DC output with a capacity of 13 A.

7.1 Power Output

Both models deliver equivalent regulated power suitable for most PLCs and machine control applications.

7.2 Design and Features

The 1756-PA75B may include updated efficiency or safety enhancements compared to the base 1756-PA75. Reviewing the manufacturer’s datasheet ensures proper selection for your specific industrial requirements.

7.3 Compatibility

Both power supplies are fully compatible with ControlLogix systems, ensuring seamless operation, minimal integration issues, and straightforward installation within existing automation infrastructures.
