Exploring Allen Bradley 1763 Logic 1000 Controller 1763-l16dwd

1. Overview of the Allen Bradley 1763 Series

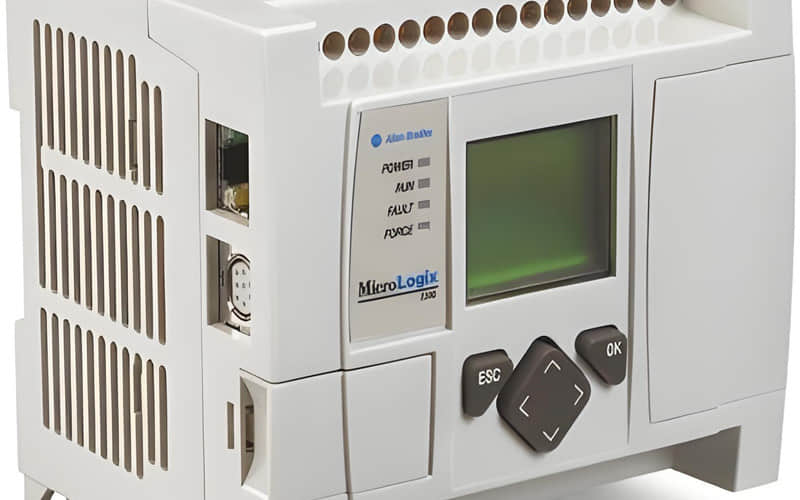

The Allen-Bradley 1763 Series, also known as the MicroLogix 1100, is a compact programmable logic controller (PLC). The design targets small to medium industrial automation tasks.

It features built-in Ethernet communication ports that allow seamless data exchange and remote monitoring. This capability reduces operational overhead and enhances productivity across distributed systems.

The controller features embedded analogue queue inputs, discrete inputs, and output channels, supporting both digital and analogue signal types. The built-in I/Os and support for expansion modules make the 1763 Series suitable for many control tasks. These tasks include machine control, process automation, and energy management systems.

An integrated LCD enables local diagnostics and basic configuration, simplifying setup and maintenance.

The device has several communication ports. These include RS-232 and RS-485. They support DF1, Modbus RTU, and DH-485 protocols. This allows strong connections with HMIs and other devices.

The 1763 Series is a popular choice for automation engineers. It uses little power, is easy to use, and is exceptionally reliable.

1.1 Applications in Industry

The MicroLogix 1100 programmable controller is widely used in:

Manufacturing for controlling packaging systems and conveyor belts.

l Building automation for lighting, HVAC, and access control.

l Water/wastewater management for pump control and level monitoring.

l Oil and gas for remote monitoring in field environments.

l This PLC has Ethernet ports and flexible I/O options. It provides scalable and cost-effective automation for many industries.

2. Ladder Logic Programming with Allen Bradley 1763

2.1 Introduction to Ladder Logic

Ladder Logic is the primary programming language for the MicroLogix 1100 programmable controller, simulating relay-based control systems familiar to technicians and engineers.

RSLogix 500 software provides a visual interface for creating, testing, and debugging ladder logic, enhancing development efficiency. Built-in diagnostic tools enable real-time system modification and troubleshooting.

2.2 Programming Examples

(1) Start/Stop Motor Control

Inputs: I:0/0 (Start), I:0/1 (Stop)

Output: O:0/0 (Motor)

Logic: Start latching the motor output; stop unlatching it.

(2) Timer-Based Delay

Input: I:0/2 (Start Signal)

Output: O:0/1 (Fan)

Timer: T4:0 (10-second delay)

Logic: The timer triggers the fan after a delay.

(3) Level Control with Analogue Input

Analog Input: I:1.0 (0–10V = 0–100%)

Output: O:0/2 (Pump)

Logic: If I:1.0 < 3.0V (30%), activate the pump.

3. PLC Communication Protocols Compatible with Allen Bradley 1763

3.1 Supported Protocols

The MicroLogix 1100 supports the following protocols:

l EtherNet/IP for high-speed industrial networking.

l DF1 over RS-232 for programming and HMI communication.

l Modbus RTU over RS-485 for legacy systems.

l DH-485 for peer-to-peer controller networking.

l These ensure compatibility across a wide range of programmable logic controller (PLC) networks.

3.2 How to Establish Communication

To establish communications:

l Use Ethernet communication ports or RS-232/RS-485 serial ports.

l Configure IP addresses and serial settings via RSLogix 500.

l Verify communication parameters such as baud rate and parity.

l Initiate the connection for real-time monitoring and programming.

4. Detailed Review of Popular Models

4.1 1763 L16BBB Allen Bradley

l Inputs: 10 digital (24V DC), two analogue inputs (0–10V)

l Outputs: 6 relay output channels

l Power Supply: 24V DC (low power consumption)

l Ports: RS-232/RS-485 and Ethernet

l Features: LCD, expansion capability

4.2 1763-NC01 Allen Bradley

Accessory: Serial cable for RS-232 port

Supports: DF1 protocol communication

Ensures reliable PC-to-controller communication when Ethernet is unavailable.

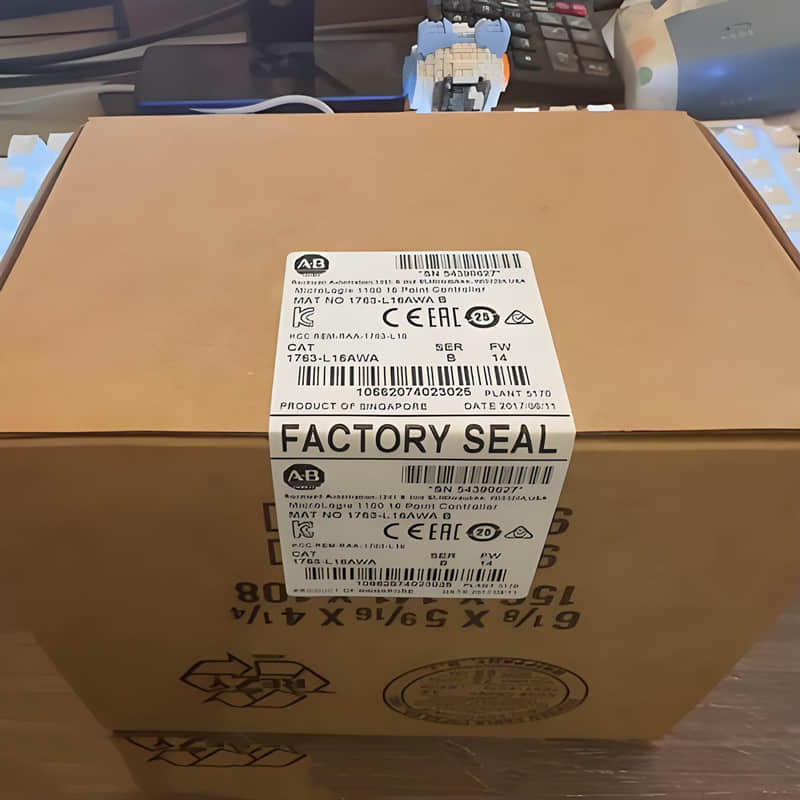

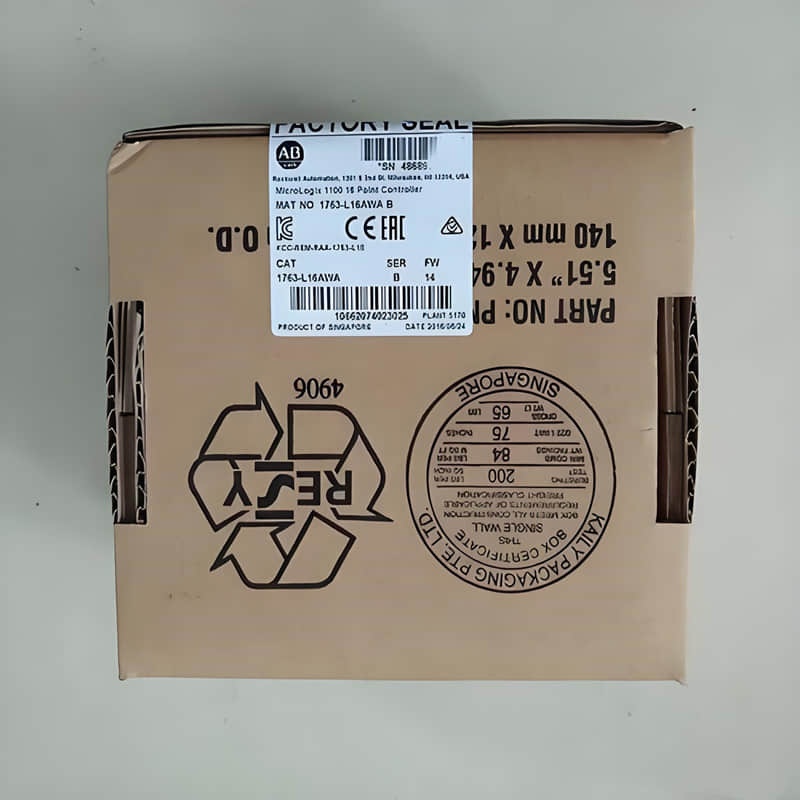

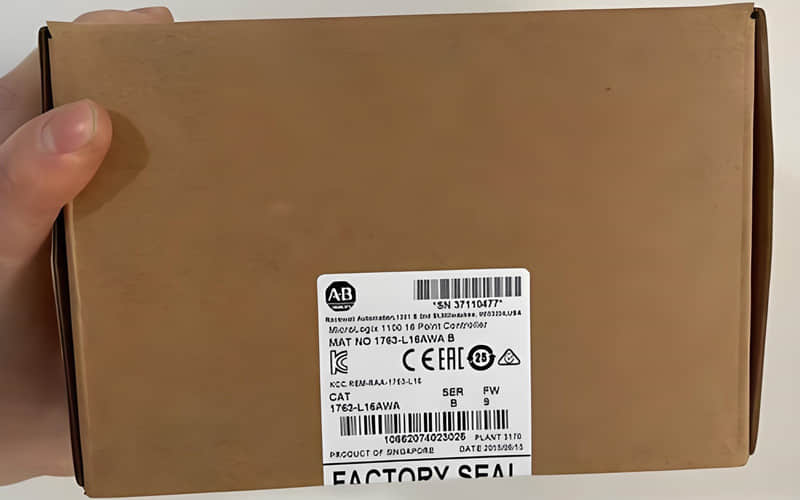

4.3 Allen Bradley 1763 L16AWA

l Power Supply: 120–240V AC

l Power Consumption: 46 VA

l Inputs: 10 digital (120V AC), two analogue (0–10 V DC)

l Outputs: 6 relays

l Ports: RS-232/RS-485, Ethernet

l Other Features: Embedded web server, online editing, up to 4 expansion modules

4.4 Allen Bradley 1763 L16BBB

l Power Supply: 24V DC

l Inputs: 10 digital (24V DC), two analogue inputs

l Outputs: 2 relay, 4 FET (24V DC)

l Memory: 8 KB total

l Ports: RS-232/RS-485, Ethernet

l Certifications: Hazardous Location (Class I, Div 2, Groups A–D)

4.5 Comparison: Allen Bradley 1763 L16BWA vs. Allen Bradley 1763-I16DWD

L16BWA: Operates on 120–240V AC, supports 10 AC digital inputs, two analogue, and six relay outputs. Ideal for AC-based systems.

L16DWD: Operates on 24V DC with mixed input voltages, making it perfect for environments with variable input levels.

Both offer Ethernet communication ports, expansion support, and reliable PLC performance.

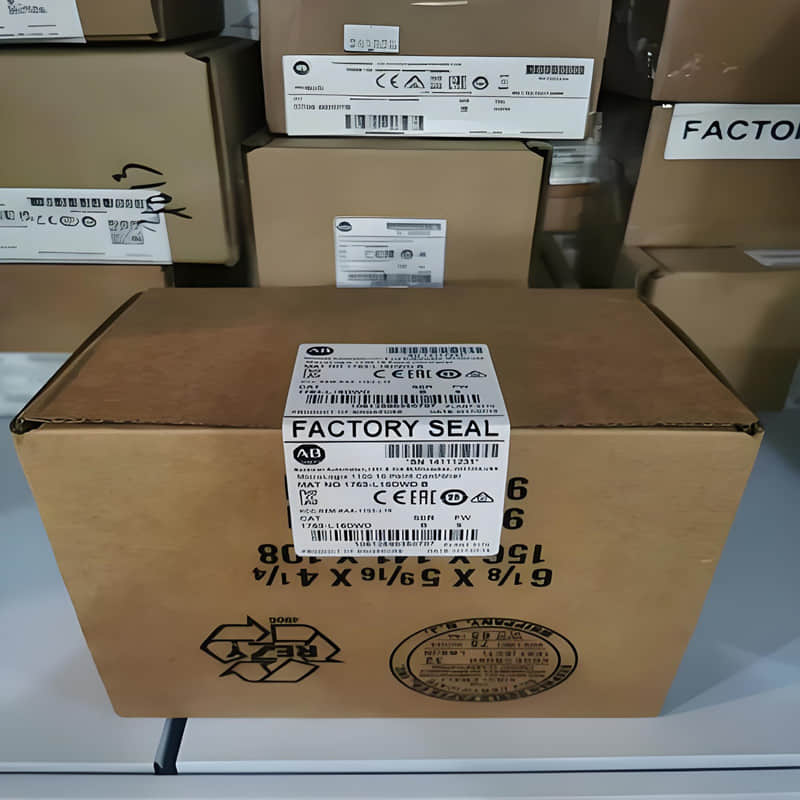

4.6. Allen Bradley 1763-I16DWD

Power: 12–24 V DC, 35 W max
• Memory: 8 KB total (4 KB program / 4 KB data), battery-backed
• I/O on board
 – 10 digital inputs: 6 standard (12/24 V DC), four high-speed (40 kHz)
 – 2 analogue inputs: 0–10 V, 10-bit
 – 6 relay outputs: 5 A per point, 30 A total, 250 V AC max
• Communications
 – 10/100 Mbit Ethernet with EtherNet/IP & web server
 – Isolated RS-232/485: DF1, DH-485, Modbus RTU, ASCII
• Expansion: 4-slot 1762 I/O rack support
• Dimensions: 90 × 110 × 87 mm (H×W×D)
• Certifications: UL, CE, C-Tick, Class I Div 2 (HazLoc)

5. Future of Allen Bradley 1763 Series

The Allen-Bradley 1763 Series will benefit from enhanced cloud integration, improved cybersecurity, and improved Ethernet/IP features.

While newer PLC models are emerging, the MicroLogix 1100 remains a trusted choice for compact, cost-effective automation.

Its continued success depends on serviceability. Many users rely on third-party repair services to maintain their devices over the long term. Combined with detailed technical notes and documentation, the 1763 Series continues to support critical control operations in evolving industrial environments.
