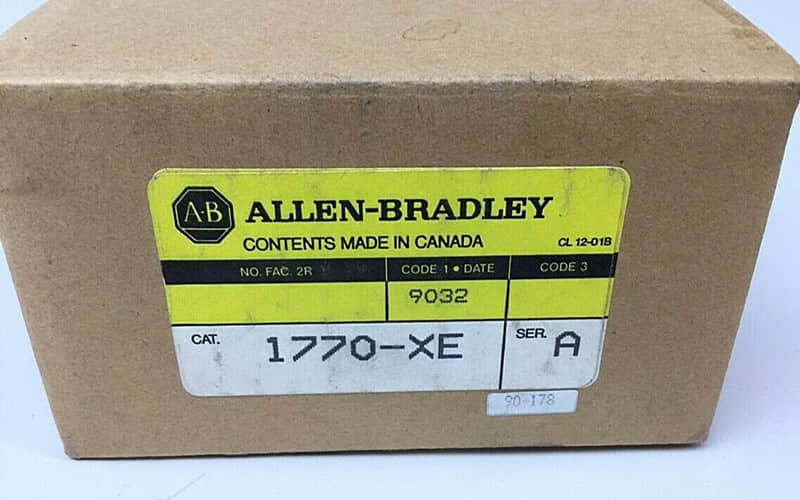

Allen-Bradley 1770-XE Connector Kit
1. General Description
People also call the Allen-Bradley 1770-XE Connector Kit the Allen Bradley 1770-XE or 1770XE. This kit facilitates 15-pin Data Highway communication. Important in industrial automation systems.
Some users call it the Allen Bradley 1770-XE Data Highway Connector Kit. They also refer to it as the 1770Xe PLC hardware kit. This kit helps ensure reliable communication between PLCs and other devices on Data Highway networks.

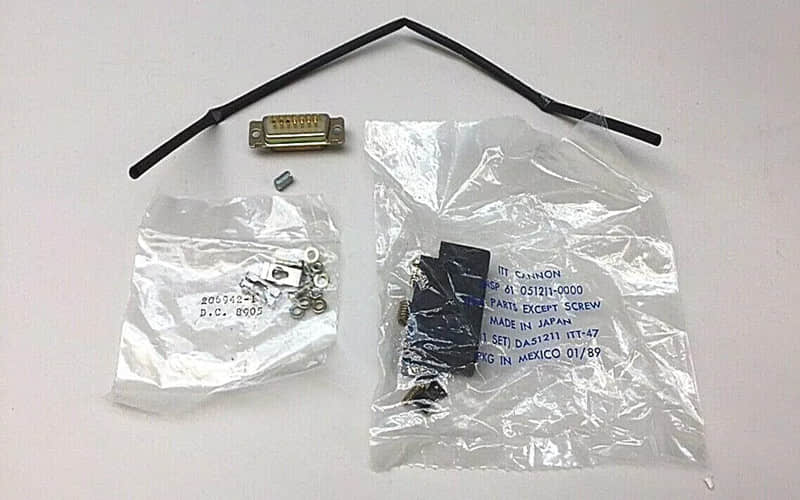

This Allen Bradley 1770-XE hardware kit includes the connectors and accessories needed for installation. It ensures smooth system integration and efficient data transfer in tough industrial environments.
Along with the 1770-XE, Allen-Bradley offers related hardware. This includes the 1770-XYC, 1770-CD, 1770-4.1, and 1770-SC. These products support extra connectivity and expansion needs.
2. Technical Specifications
l Manufacturer: Rockwell Automation
l Brand: Allen-Bradley
l Part Number: 1770-XE
l Type: Data Highway Connector Kit
l Connector Type: 15-pin (male and female)
l Compatibility: Works with various Allen-Bradley PLCs and Data Highway devices
l Installation Type: Supports both dropline and trunkline configurations
3. Detailed Features
l Comprehensive Kit: Includes all necessary components—both male and female 15-pin connectors for trunkline and dropline applications.
l Robust Design: Industrial-grade construction ensures long-term durability.
l Flexible Connectivity: Ideal for multiple system configurations and Data Highway network layouts.
l User-Friendly Installation: Straightforward assembly with clear wiring guidelines.
4. Applications of the Allen-Bradley 1770-XE Kit
l The Allen-Bradley 1770-XE Connector Kit is commonly used in:
l Industrial Automation Systems: Connecting PLCs, HMIs, controllers, and field devices.
l Data Highway Networks: Enabling reliable communication across assembly lines and production environments.
l Control Systems Integration: Ensures interoperability between programmable logic controllers and monitoring systems.
l Network Expansion: Useful for extending existing Rockwell/Allen-Bradley networks or adding new devices.
5. Installation of the 1770-XE Connector Kit
Steps to install the 1770-XE:
A. Gather all components in the hardware kit.
B. Select the proper network layout (dropline or trunkline).
C. Connect the 15-pin male and female connectors following the supplied wiring diagram.
D. Make sure to align and secure the connectors properly.
E. Apply system power and verify communication integrity.
6. Related Part Numbers of the 1770-XE Connector Kit
l Allen-Bradley 1770-XG Connector Kit
l Allen-Bradley 1770-KD Connector Kit
l Allen-Bradley 1770-KC Connector Kit
l Allen-Bradley 1770-XYC
l Allen-Bradley 1770-CD
l Allen-Bradley 1770-4.1
l Allen-Bradley 1770-SC
