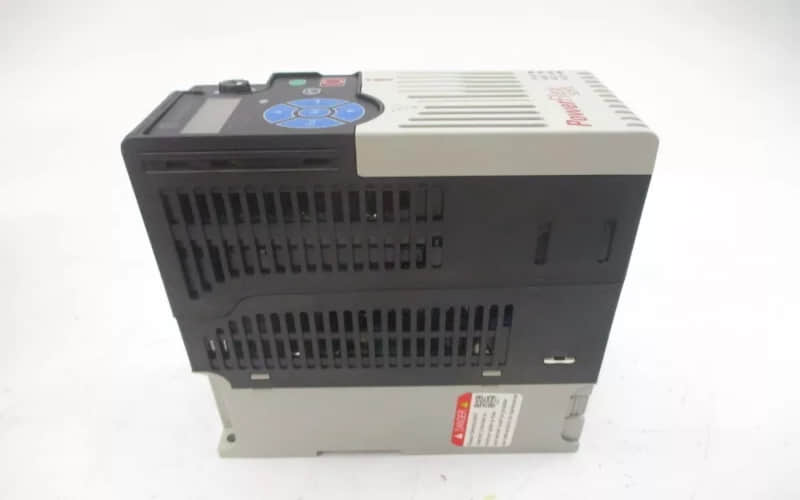

Allen-Bradley 25B-D2P3N104 PowerFlex 525 AC Drive

Tel: 8613860191849
Email: [email protected]

GET A QUOTE

General Description:

The Allen-Bradley 25B-D2P3N104 is a PowerFlex 525 series AC drive designed for precise motor control in industrial applications. This drive offers a power rating of 0.75 kW (1 HP).

l Input Voltage Rating: 380-480V AC, 3-Phase

l Output Current Rating: 2.3 A

l User Interface: Integral Keypad with Potentiometer and LED Display

l Brake IGBT: Included

l Dimension Height: 22.479 cm

l Dimension Width: 14.097 cm

l Dimension Length: 23.749 cm

l Weight: 1.53 KG

Detailed Features of 25B-D2P3N104 PowerFlex :

1. The 25B-D2P3N104 is equipped with Sinusoidal PWM, Volts/Hertz, Sensorless Vector Control, Economizer SVC motor control, and Closed Loop Velocity Vector Control, providing versatile control options for different motor types.

2. It offers protection features such as Bus Overvoltage Trip, Bus Undervoltage Trip, Electronic Motor Overload Protection, Overcurrent, Ground Fault Trip, and Short Circuit Trip, ensuring motor and drive safety.

3. The drive supports multiple communication protocols, including Ethernet/IP, DeviceNet, and RS485, for integration with different industrial systems.

Applications:

A. Installation of 25B-D2P3N104 PowerFlex :

B. Installation involves mounting the drive in an appropriate location, connecting the power supply, and configuring the drive settings according to the user manual. Proper grounding and cable management are essential for safe operation.
