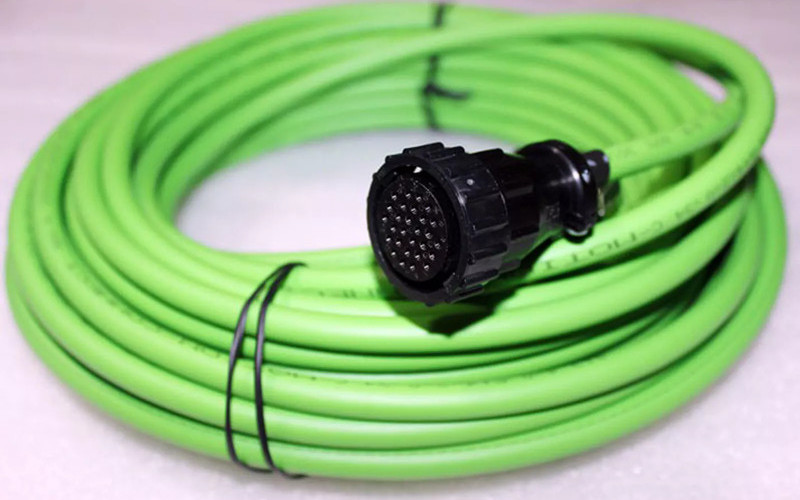

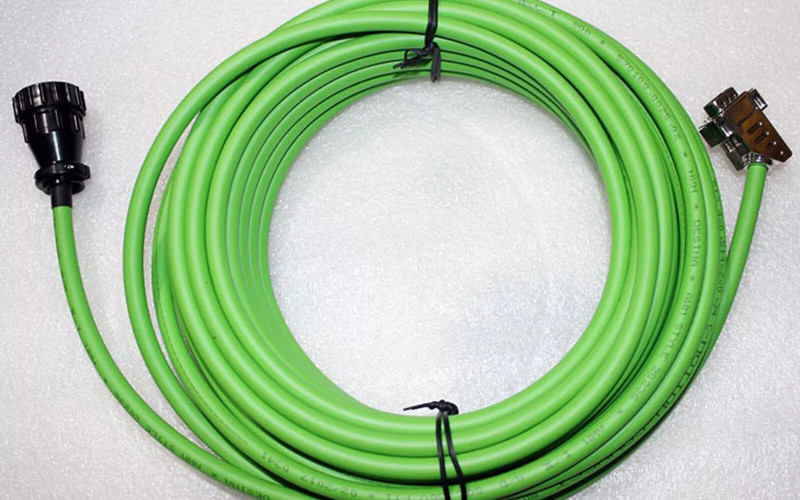

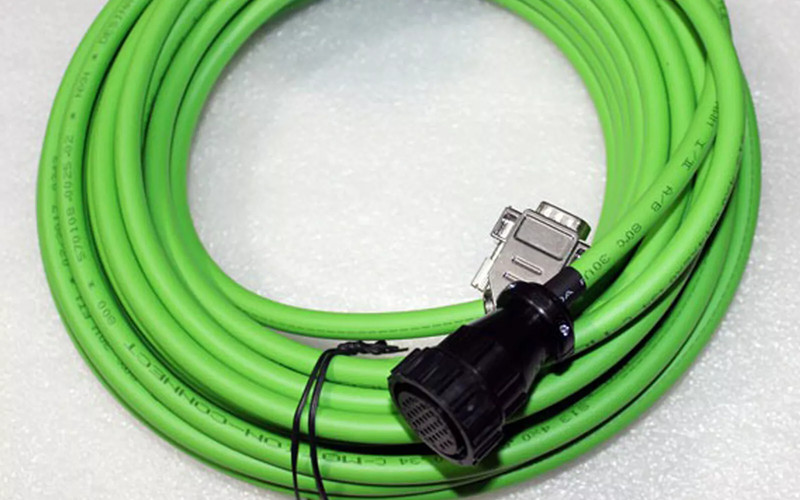

Allen-Bradley Servo Cable 2090-CFBM6DD-CCAF03
1. Introduction
The Allen-Bradley 2090-CFBM6DD-CCAF03 Servo Feedback Cable is part of the 2090 series. This series includes motor and feedback cables.
Rockwell Automation designs these cables for its Kinetix Servo Systems. These Allen-Bradley motor feedback cables provide precise and reliable signals between servo motors and their drives. This helps achieve smooth and accurate motion control in strict industrial automation settings.
This cable is part of the Allen-Bradley 2090-CFBM6DD family. Engineers design it for high-performance servo feedback systems. It works well with other models, such as the 2090-CFBM6DD-CCAA03 and 2091-CFBM6DD-CCAA01 Servo Products.
The 2090-CFBM6DD-CCAF03 variant is 3 meters long. This makes it great for applications that need a small, efficient feedback connection. For installations requiring longer runs, the 7m Feedback Cable versions (such as the 2090-CFBM6DD-CCAF07) are also available.
2.Technical Specifications
l Manufacturer: Rockwell Automation / Allen-Bradley
l Cable Type: Motor Feedback Cable
l Product Family: Allen-Bradley 2090 Series
l Part Number: 2090-CFBM6DD-CCAF03
l Compatible Models: 2091-CFBM6DD-CCAA01, 2090-CFBM6DD-CCAA03, 2090-CFBM6DD-CCAF02, 2090-CFBM6DD-CCAF05
l Cable Length: 3 meters (9.84 ft)
l Connector Type: Right-angle circular bayonet locking connector to D-sub connector
l Conductor Type: Twisted pair, shielded
l Insulation Material: PVC jacket, resistant to oil, chemicals, and industrial contaminants
l Voltage Rating: 300V
l Temperature Range: -20°C to 80°C (-4°F to 176°F)
l Cable Diameter: 6.3 mm
l Minimum Bend Radius: 10x cable diameter (approx. 63 mm)
l Certifications: CE, UL Recognized, RoHS Compliant
3. Detailed Features of Servo Cable 2090-CFBM6DD-CCAF03
A. High-Performance Feedback Transmission:
B. Engineers design the Allen-Bradley 2090-CFBM6DD-CCAF03 for servo-motor feedback systems. It provides accurate feedback on position, speed, and torque between the motor and drive.
C. Noise Resistance and Shielding:
D. Twisted-pair, shielded construction minimizes electromagnetic interference (EMI) and signal distortion, allowing for stable performance even in high-noise industrial environments.
E. Durable and Flexible Design:
F. The PVC jacket provides flexibility and resistance to abrasion, oil, and industrial contaminants, supporting both static and dynamic cable applications.
G. Secure Bayonet Locking Connection:
H. The bayonet locking mechanism provides a strong, stable connection between parts. This makes it perfect for motion control and robotic systems.
I. Plug-and-Play Installation:
J. Preassembled connectors simplify installation, enabling plug-and-play integration without additional wiring or assembly.
K. Temperature and Environmental Reliability:
L. The cable works well over a temperature range of -20°C to 80°C. It keeps a strong signal even in harsh conditions.
M. Compatible Servo Products:
N. This product works well with Allen-Bradley Kinetix TL Series servo motors and drive systems. This includes the Allen-Bradley 2090-CFBM6DD-CCAA03 TL Series 3m Length Feedback Cable. It allows users to use different cable lengths and setups interchangeably.
4. Applications of Allen Bradley 2090-CFBM6DD-CCAA03 Motor Feedback Cable
l Servo Motor Feedback Systems:
l Designed for feedback loops where accurate position, velocity, and torque control are critical for precision operation.
l Industrial Automation:
l Used in Allen-Bradley servo systems across industries such as automotive manufacturing, packaging, robotics, and material handling.
l Machine Tools and CNC Equipment:
l Ensures consistent performance and high-accuracy feedback in computer numerical control (CNC) and precision machinery.
l Conveyors and Material Handling Systems:
l Provides reliable feedback communication for servo-driven conveyors and automated transport systems.
l Robotic Systems:
l Transmits feedback signals between robotic actuators and control modules for highly accurate, real-time motion control.
5. Related Part Numbers of Allen-Bradley 2090-CFBM6DD-CCAA03 Tl Series 3 m Length Feedback Cable
l 2090-CFBM6DD-CCAF02: 2-meter version of the feedback cable.
l 2090-CFBM6DD-CCAF05: 5-meter version for mid-distance servo applications.
l 2090-CFBM6DD-CCAF07: 7-meter feedback cable for extended connection distances.
l 2090-CFBM6DD-CCAA03: TL Series 3-meter motor feedback cable, compatible with various Allen-Bradley servo drives.
l 2091-CFBM6DD-CCAA01: Allen-Bradley servo feedback cable variant designed for similar servo applications.
l 2090-CFBM7DD-CCAF03: Enhanced version featuring higher temperature tolerance.
l 2090-XXNM6XX-XXAXXX: General-purpose motor power and feedback cables for alternate system configurations.
6. Summary
The Allen-Bradley 2090-CFBM6DD-CCAF03 is a top-quality feedback cable. Rockwell Automation designed it for Kinetix Servo Systems.
This 3-meter-long cable has a 300V rating. It features strong PVC insulation and a shielded design. This ensures clear, interference-free signal transmission in a compact, durable form.
This product works with models like the Allen-Bradley 2090-CFBM6DD-CCAA03 and 2091-CFBM6DD-CCAA01. It also supports more extended versions, such as the 7m Feedback Cable. It offers a cost-effective and reliable solution for servo motor feedback, industrial motion control, and robotic automation.
