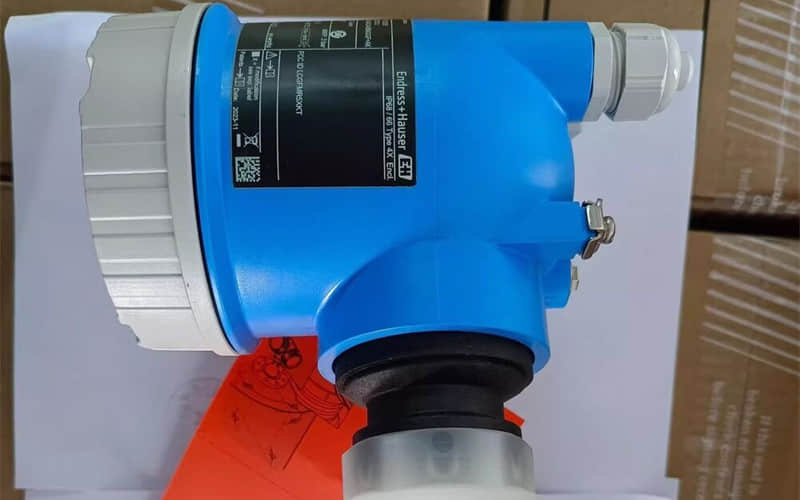

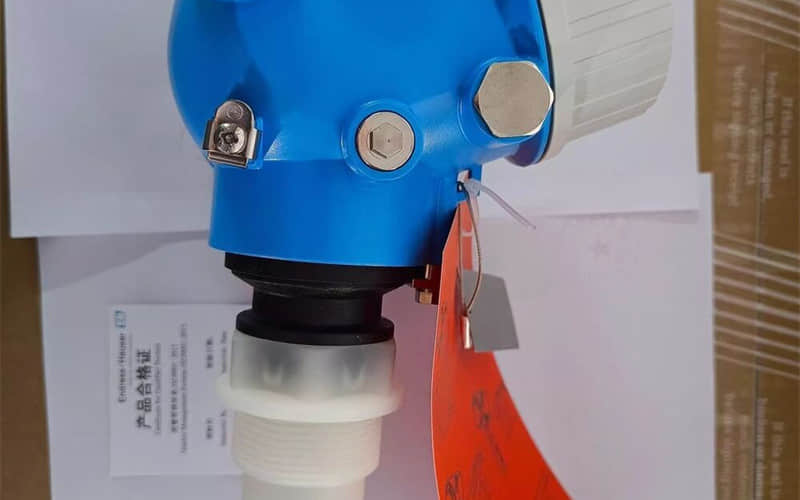

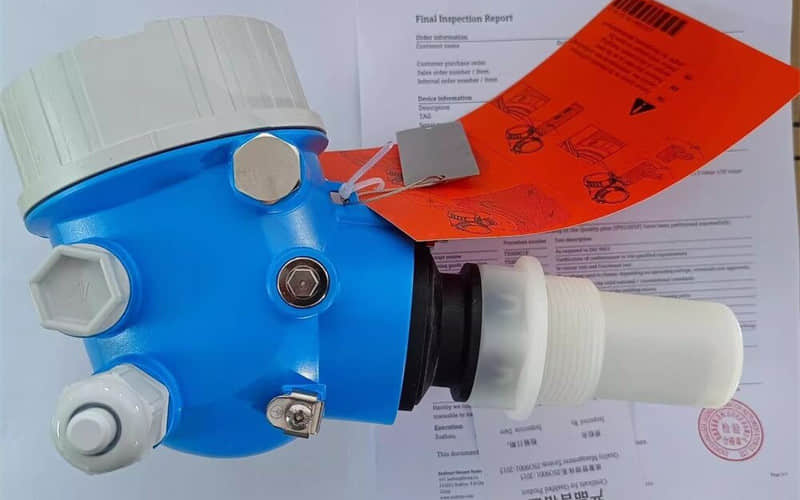

Endress Hauser FMR50-17D0/0 Meter FMR50-AAACAABMGGF

1. General Description

The Endress Hauser FMR50-17D0/0 Radar Level Meter is part of the FMR50 and FMR series. A reliable Micropilot FMR50 radar level instrument exists.

Engineers designed this device for continuous non-contact level measurement. The E+H FMR50-17D0/0 is also available. This new radar level gauge offers great accuracy for liquids and bulk solids.

The Micropilot FMR50 uses advanced radar technology to provide reliable measurements. It works well even when product and process conditions change. This includes different temperatures, densities, vapors, and foam. This design serves simple reservoir and storage uses.

It provides stable results and needs little maintenance. This is because it uses non-contact measurement and has no moving parts.

The Endress Hauser FMR50-17D0/0 Radar Level Meter works well in tanks, silos, vessels, and reservoirs. It keeps its accuracy over time, even in tough conditions.

2. Product Specifications and Parameters

Model: FMR50-17D0/0 (E+H FMR50-17D0/0)

Type: Radar Level Meter / Radar Level Sensor

Series: Micropilot FMR50

Measuring Principle: Radar (Microwave)

Measuring Range: Maximum measuring distance: 30 m

Process Temperature: –40°C to +200°C

Process Pressure: Up to 40 bar (depending on configuration)

Accuracy: ±2 mm (application-dependent)

Output Signals: 4–20 mA, HART, Modbus

Power Supply: 24 V DC ±20%

Enclosure Protection: IP67

Approvals/Certifications: ATEX, FM, CSA (hazardous areas)

Flange Options: Multiple process connections available

Housing Material: Stainless steel

3. Endress Hauser FMR50-17D0/0 Application Fields

The Endress Hauser FMR50 and Micropilot FMR50 radar level gauges are ideal for wide range industries. They provide reliable, continuous, non-contact level measurement.

l Oil & Gas: Large tank level monitoring, storage reservoirs, and custody transfer

l Chemical Industry: Reactors, pipelines, aggressive media tanks

l Food & Beverage: Hygienic storage vessel level monitoring

l Water & Wastewater: Reservoirs, basins, and remote monitoring

l Pharmaceuticals: Clean, non-invasive radar level measurement in process vessels

l Mining & Aggregates: Bulk solids measurement in silos and bins

These instruments are ideal for reservoir and storage applications, ensuring stable performance under fluctuating process conditions.

4. Endress Hauser FMR50 Device Properties

l Continuous Non-Contact Measurement: No moving parts, minimal wear, and higher long-term reliability

l Wide Measuring Range: Up to 30 m, enabling use in large tanks and silos

l Robust Radar Technology: Ensures stable readings in vapor, foam, dust, or turbulence

l Resistant Design: Handles high pressures, temperature swings, and corrosive media

l Easy Installation: Fast commissioning with adaptable process connections

l Reliable Under Process Changes: Maintains accuracy even with changing density or product properties

5. Endress Hauser FMR Benefits

A. High Accuracy: Delivers reliable results even in fluctuating or low dielectric constant environments

 B. Low Maintenance: Fully non-contact measurement reduces mechanical wear

 C. Process Optimization: Helps improve monitoring, safety, and operational efficiency

 D. Certified Safety: Suitable for hazardous environments with ATEX / FM approvals
