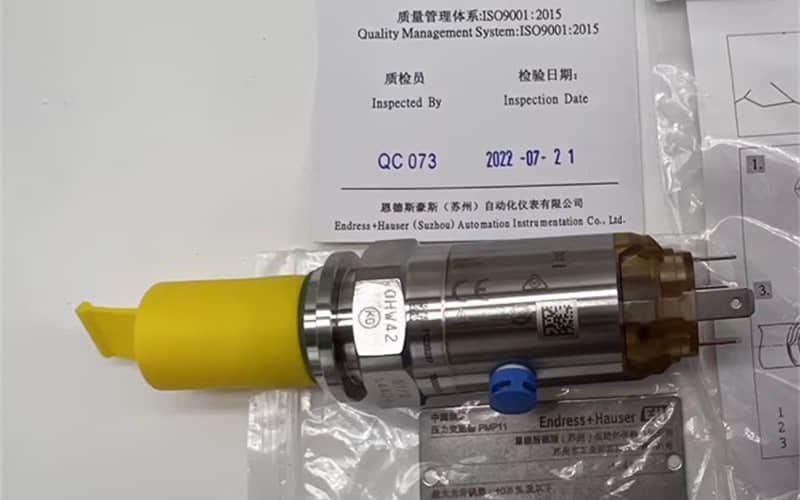

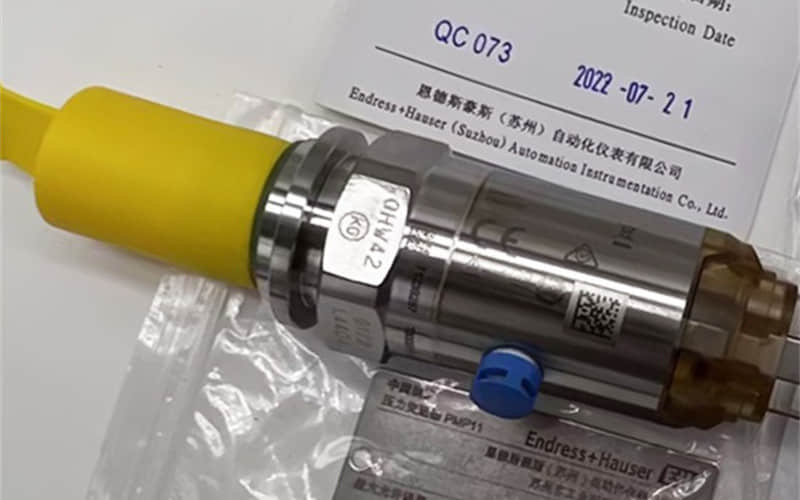

Endress+Hauser Pressure Transmitter Cerabar PMP11-1DN8/0

The Endress+Hauser Cerabar PMP11-1DN8/0 Pressure Transmitter is part of the trusted Cerabar pressure transmitter family from Endress+Hauser. Engineers designed it as a cost-effective and compact pressure transmitter for standard applications in the process industry. People recognize the Cerabar PMP11 for its simplicity, reliability, and strength. It measures gauge pressure and absolute pressure in gases, vapors, and liquids.

The E+H PMP11-1DN8/0 Pressure Transmitter gives reliable and consistent gauge readings. It works from 400 mbar to 40 bar. This makes it suitable for many general industrial uses. Built with a fully welded metal sensor, it provides safe and accurate performance under challenging process conditions.

1.Product Specifications

l Measuring accuracy: ±0.5% of full scale

l Process temperature: -25…+85 °C (-13…+185 °F)

l Pressure measuring range: 400 mbar up to 40 bar (6 psi up to 600 psi)

l Sensor type: Piezoresistive, fully welded metal sensor

l Process connection: Threaded

l Material: 316L stainless steel

l The Cerabar PMP11 gauge pressure transmitter measures gauge pressure from 400 mbar to 40 bar. It offers reliable and stable performance, even in tough conditions. It ensures consistent accuracy across a wide pressure measurement range and delivers long-term dependability for everyday industrial use.

2.Field of Application

l The Cerabar PMP11 is the most economical compact pressure transmitter from Endress+Hauser, combining affordability with precision.

l This device serves the process industry. It uses a piezoresistive pressure sensor. This sensor can measure gauge pressure from 400 mbar to 40 bar.

l The pressure transducer has a fully welded metal sensor. This design ensures it is durable and leak-free. It works well with gases, vapors, and liquids.

l The Cerabar PMP11 gives accurate gauge readings from 400 mbar to 40 bar. Perfect for checking pressure in pipelines, tanks, and process systems.

l Typical process temperature range: -25 °C to +85 °C (-13 °F to +185 °F).

l The compact, lightweight design and threaded process connection make installation fast and simple.

3.Advantages

A. The ultra-compact design and adjustable measuring ranges make installation and setup quick and easy in the factory.

B. Reference measurement accuracy of 0.5%, with high long-term stability and repeatability, ensures dependable process monitoring.

- It is made from 316L stainless steel.

- It uses fully welded sensor technology.

- This design offers strong resistance to corrosion.

- It also has good compatibility with processes.

The PMP11 can measure gauge and absolute pressure. Useful for applications like process pressure, differential pressure, level, and flow measurement in liquids, vapors, and

C. The Cerabar PMP11 shows Endress+Hauser’s promise to provide affordable and dependable pressure measurement tools. It ensures the right instrument for every task.

D. This is one of the most affordable compact pressure transmitters available. It offers great performance, durability, and value for industrial users.

E. Global service and technical support ensure reliable operation throughout the product’s lifecycle.

4.Similar Models

l Cerabar PMC21

l Cerabar PMP71B

l Cerabar PMP51B

l Cerabar PMC51

l Cerabar PMC71

l Cerabar PMP21

l Cerabar PMP23

l Cerabar PMP51

l Cerabar PMP71

l Cerabar PMP75

l Cerabar PMC11

l Cerabar PMP11

l Ceraphant PTC31B

l Ceraphant PTP31B

l Ceraphant PTP33B

l Cerabar PMC51B

l Cerabar PMC71B
