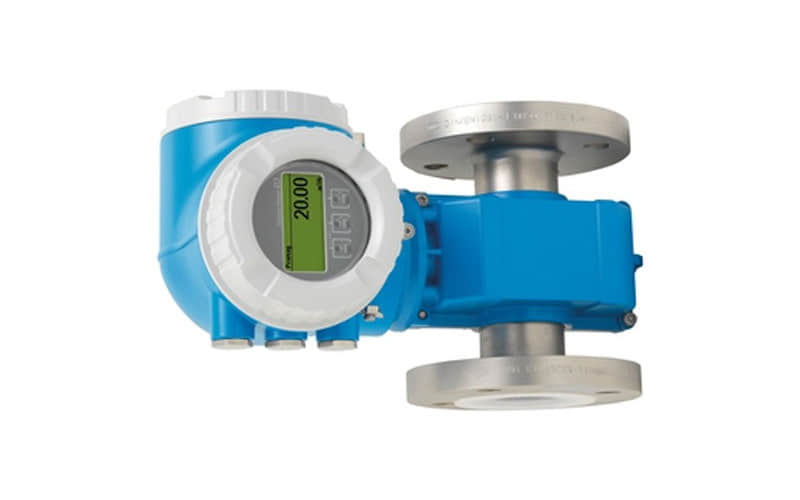

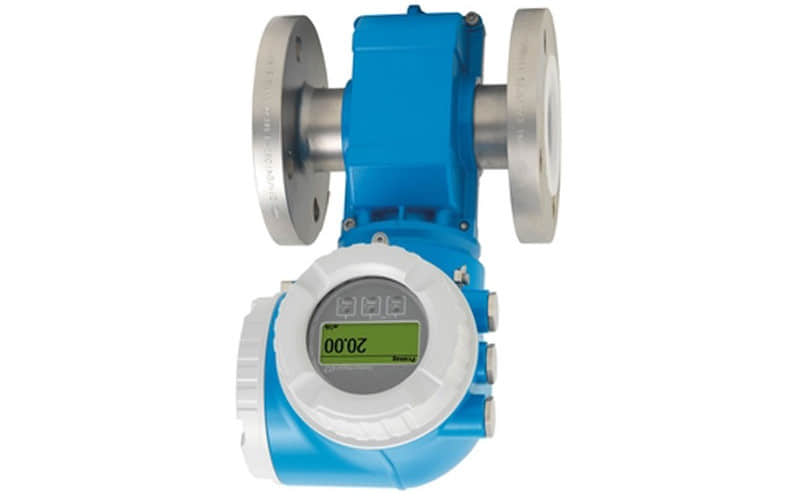

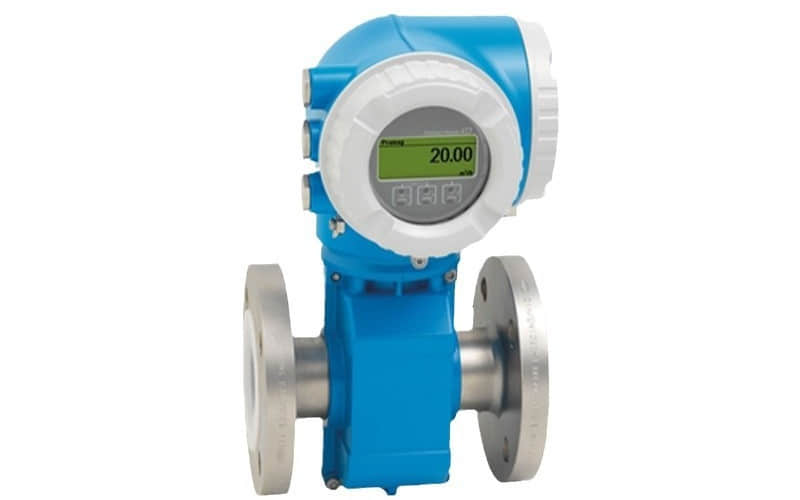

Proline Promag P 300 Electromagnetic Flowmeter

General Description:

The Promag P 300 offers a bidirectional measuring principle virtually independent of pressure, density, temperature, and viscosity78. It features a compact dual-compartment housing and a 4-line backlit display with touch control for easy operation

Proline Promag P 300 Product Specifications and Parameters:

l Nominal Diameter: DN15 (1/2")1 to DN 600 (24")

l Flow Measurement Range: 0.002 to 100 m³/h1 (4 dm³/min to 9600 m³/h)

l Liner Materials: PTFE, PFA, PFA high-temperature

l Electrode Materials: Tantalum, 1.4435 (F316L), Alloy C22, 2.4602 (UNS N06022), Platinum, Titanium

l Operating Temperature: -20 to +150 °C (-4 to +302 °F) for PFA liner14, -40 to +130 °C (-40 to +266 °F) for PTFE liner

l Operating Pressure: Up to PN 40, Class 300, 20K

l Measurement Error: Volume flow (standard): ±0.5 % o.r. ± 1 mm/s2345. Volume flow (option): ±0.2 % o.r. ± 2 mm/s

l Housing Material: Aluminum, coated1, AlSi10Mg coated, 1.4409 (CF3M) similar to 316L

l Power Supply: 100-230VAC/24VDC1, DC 24 V, AC 100 to 230 V

l Outputs: 4-20 mA, Pulse/frequency/relay output, PROFINET1, HART, WirelessHART

l Digital Communication: HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, Ethernet/IP, OPC-UA

l Degree of Protection: IP66/67, Type 4X enclosure

Application Fields:

l Chemical and process applications with corrosive liquids

l Accurate flow measurement of conductive liquids in various industries

l Industrial applications

Proline Promag P 300 Device Properties:

l Integrated verification with Heartbeat Technology

l Freely configurable I/O functionality

l Compact dual-compartment housing with up to 3 I/Os

l Backlit display with touch control and WLAN access

l Remote display available

l All common Ex approvals

Benefits:

l High measurement accuracy

l Robust design

l Wide range of applications

l Easy installation and maintenance

l Possibility of integration into automation systems

l Reduced complexity and variety due to configurable I/O functionality
