Honeywell TC808B1066AUS-IV Heat Detector

General Description

The Honeywell TC808B1066AUS-IV Heat Detector is a state-of-the-art thermal detection device engineered for integration into fire alarm systems. Utilizing a single thermistor sensing circuit,

The TC808B1066AUS IV is a part of the TC808 Series of thermal detectors that can be connected to proprietary analogue addressable communications protocols.  This heat detector is perfect for applications in open areas where early detection of fire is crucial. Its design allows seamless integration into existing fire alarm systems, providing reliable performance and peace of mind.

Technical Specifications of Honeywell TC808B1066AUS-IV

Operating Voltage: 15 to 32 VDC

l Maximum Current Draw: 5 mA (LEDs on)

l Temperature Range: 32°F to 120°F (0°C to 49°C)

l Humidity Range: 10% to 93% non-condensing

l Sensing Element: Single thermistor

l Dimensions: 4.5" diameter x 1.5" height

l Weight: Approximately 0.5 lbs (227 g)

Detailed Features of Honeywell TC808B1066AUS-IV

1. Thermal Sensing Circuit: Utilizes advanced thermistor technology for precise temperature monitoring.

2. Dual LED Indicators: Provides local visual indication of the detector's status, enhancing situational awareness.

3. Remote LED Capability: Allows connection of remote indicators for improved visibility in larger or complex environments.

4. Compatibility: Designed to work with Honeywell's proprietary analogue addressable control panels.

5. Robust Design: Engineered for durability and reliability in various environmental conditions.

Applications

The TC808B1066AUS-IV is suitable for:

l Commercial buildings require reliable heat detection.

l Warehouses and storage facilities where open area protection is necessary.

l Industrial environments where early fire detection is critical.

Installation

l Mounting Requirements:

n The TC808B1066AUS-IV can be mounted directly onto a standard electrical box or surface-mounted using appropriate backboxes.

n Ensure compliance with local building codes during installation.

l Wiring Instructions:

n Connect wiring according to the specifications outlined in the installation manual.

n Maintain a minimum wire length of 6 inches (15.24 cm) for all connections.

n Ensure proper polarity when connecting to the control panel.

l Address Setting:

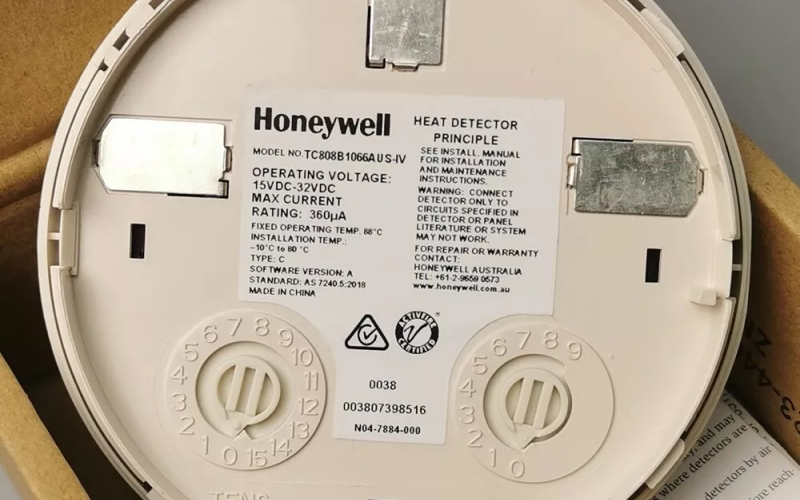

n The module's address can be set using rotary switches on the detector's base.

n Ensure unique addresses within the system to avoid communication conflicts.

l Final Checks:

n Inspect all connections before powering up the system.

n Verify LED indicators to confirm successful communication with the control panel.

Related Part Numbers

l TC808E1002M01: Similar thermal detector with different specifications.

l TC808ES1028: Enhanced model designed for specific environmental conditions.
