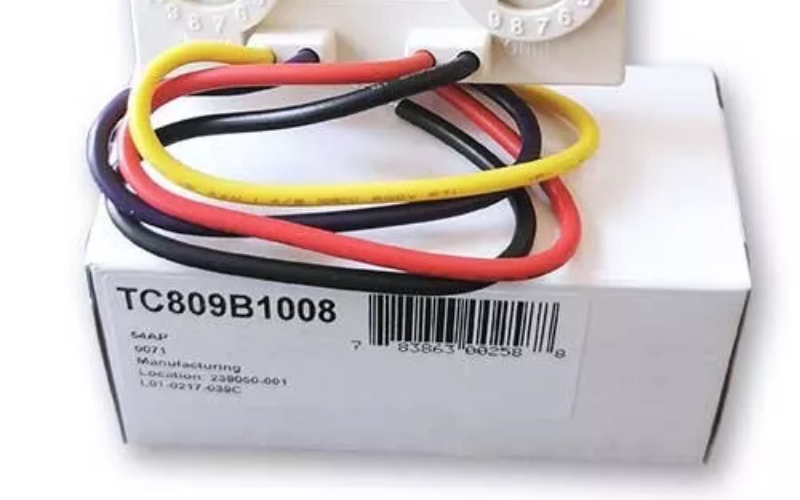

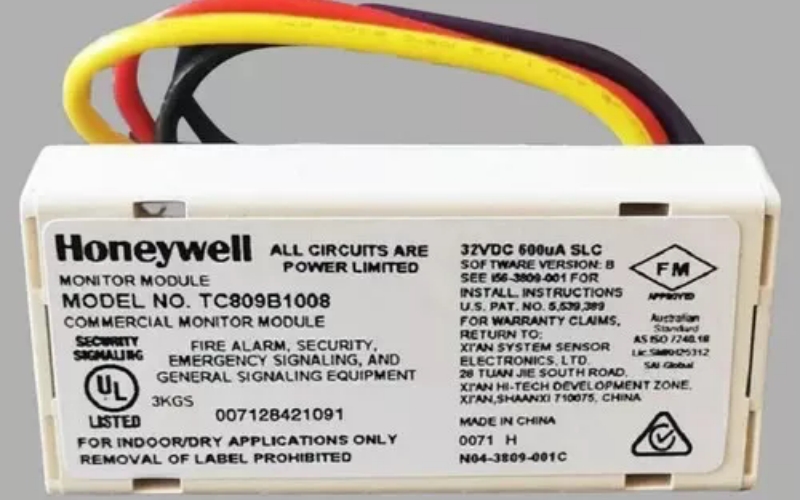

Honeywell TC809B1008 Monitor Module - Intelligent Fire Alarm Device

Availability: In Stock | Condition: 100% Original Brand New | Warranty: 1 Year

The Honeywell TC809B1008 is a compact monitor module designed for intelligent two-wire fire alarm systems. It is engineered to monitor normally open contact devices in a two-wire configuration, such as smoke detectors and manual pull stations, ensuring reliable oversight and operational integrity of critical safety systems.

Technical Specifications

  • Operating Voltage: 15 to 32 VDC

  • Average Operating Current: 350 μA (one communication every 5 seconds)

  • Maximum IDC Wiring Resistance: 1,500 ohms

  • End-of-Line Resistance: 47K ohms (included)

  • Temperature Range: 32°F to 120°F (0°C to 49°C)

  • Humidity Range: 10% to 93% (non-condensing)

  • Dimensions: Height 1.3 in. (3.302 cm) | Width 2.75 in. (6.985 cm) | Depth 0.5 in. (1.270 cm)

  • Weight: Approximately 8 oz (232 g)

Key Features & Operational Benefits

  • Supervision of Initiating Devices: Monitors connected device status, reporting open, regular, or short-circuit conditions.

  • DIP Switch Addressing: Easily set addresses from 01 to 159 on FlashScan loops or from 01 to 99 on CLIP loops.

  • Robust Communication Protocol: Utilizes Honeywell's proprietary protocols for secure and reliable data transmission.

  • Compact Form Factor: Fits inside standard single-gang junction boxes for installations in confined spaces.

  • Built-in Type Identification: Automatically transmits device identification to the control panel.

System Compatibility & Applications

The TC809B1008 module integrates seamlessly into commercial fire alarm networks supporting FlashScan and CLIP protocol loops. Typical applications include:

  • Monitoring single-device circuits across commercial and industrial facilities.

  • Integration with manual pull stations and conventional heat detectors.

  • Space-critical retrofits and new safety system deployments.

Installation Guidelines

  • Mounting: Mount inside a standard single-gang junction box directly behind the monitored device, ensuring unobstructed wiring access.

  • Wiring: Follow standard circuit diagrams. Use provided tinned leads and install a 47K ohm End-of-Line Resistor (EOLR) at the circuit end.

  • Addressing: Assign a unique address using the rotary switches to avoid communication conflicts.

  • Testing: Inspect all terminal connections and verify communication status LEDs with the main control panel prior to powering up.

FAQ: Honeywell TC809B1008 Monitor Module

Q: What are the primary protocol and voltage requirements for the Honeywell TC809B1008?

A: The Honeywell TC809B1008 operates between 15 and 32 VDC and supports both FlashScan (addresses 01–159) and CLIP (addresses 01–99) communication loops to monitor normally open contact devices with a 47K ohm end-of-line resistor.

Q: Are genuine Honeywell TC809B1008 modules available in stock with worldwide fast delivery?

A: Yes, we supply 100% original, brand-new Honeywell TC809B1008, TC809A1059, and TC910A1066 modules. Every unit is backed by a 12-month warranty, technical datasheets, and fast global express shipping to minimize plant downtime. Contact our technical team for immediate price quotes.

Q: Is this Honeywell TC809B1008 module brand new and original?

A: Yes, we supply 100% brand-new original Honeywell industrial and fire safety components with standard quality assurance.

Q: What is the difference between TC809B1008 and related models?

A: For alternative configurations, check out the TC809A1004 Standard Monitor Module or the TC809D1006 Dual Monitor Module.

Popular Honeywell Fire Safety Modules in Stock: Honeywell TC809B1008 | Honeywell TC809A1004 | Honeywell TC809D1006 | Honeywell TC809A1059 | Honeywell TC910A1066

Related Honeywell Fire Alarm Parts

Request a Quote for TC809B1008 Need bulk quantities or fast international shipping? Contact our sales engineering team today for pricing and lead times.
