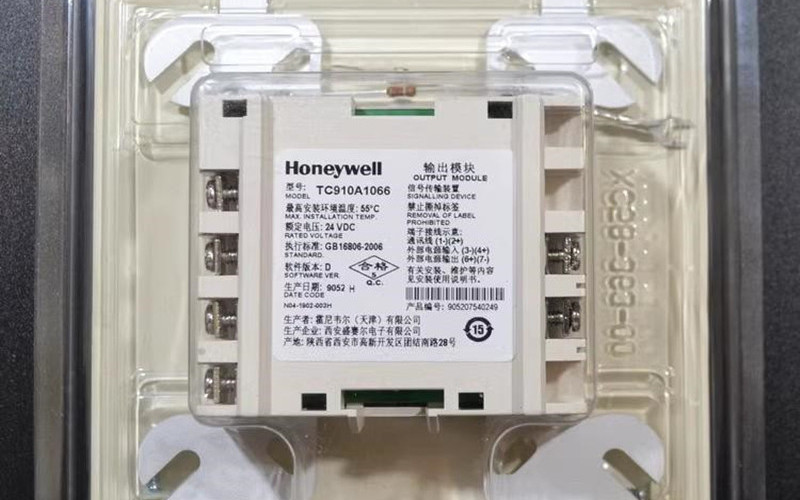

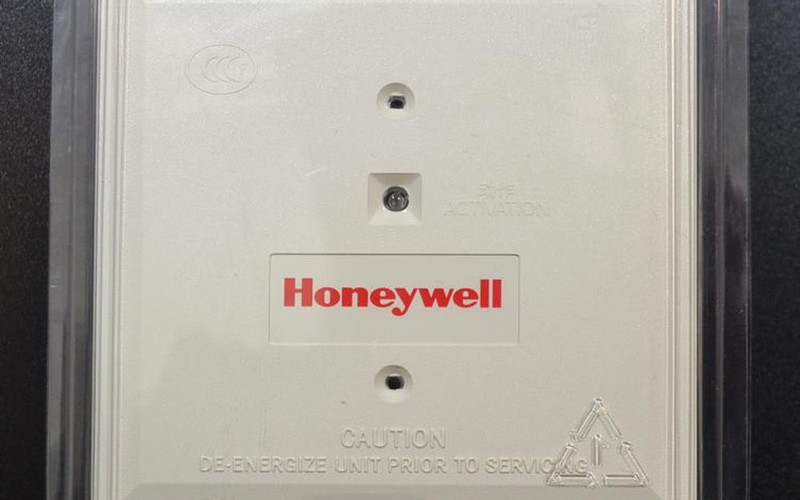

Honeywell TC910A1066 Output Module

1. General Description

The Honeywell TC910A1066 Output Module is a control device. Industries use it in automation systems.

This module helps monitor and control different processes in real time. Users employ this module in SCADA systems, DCS, and industrial automation control systems. It ensures clear communication between field devices and control units.

It supports many types of inputs and outputs. This makes it great for programmable logic controllers (PLCs), programmable automation controllers (PACs), and human-machine interface (HMI) systems. The TC910A1066 effectively helps monitor and control industrial processes in demanding industrial environments such as chemical plants, water treatment facilities, and other manufacturing sectors.

Built for rugged operation, the module performs reliably under extreme temperatures and supports remote monitoring via modern industrial computers and communications networks.

2. Specifications

l Model: TC910A1066

l Manufacturer: Honeywell

l Product Type: Output and control module

l Application: Industrial automation, HVAC, process control, and monitoring

l Use Case: Ideal for integration into SCADA systems, DCS networks, and BAS (Building Automation Systems)

2.1 Input & Output Capabilities

Inputs:

l Universal Inputs: Supports multiple signal types—voltage, current, resistance, or digital.

l Analogue Inputs: 0–10V, 4–20mA, thermistor, RTD (Pt100, Pt1000), or dry contact.

l High Accuracy: Equipped with a 16-bit ADC for precise measurements and minimal drift.

Outputs:

l Analogue Outputs: Provides 0–10V or 4–20mA signals for modulating actuators, valves, or VFDs.

l Digital (Relay) Outputs: Form-C dry contacts for alarms, equipment control, or system staging.

l The Honeywell TC910A1066 works as both an input/output control module and an output module. People use it in PLCs, PACs, and DCS systems.

2.2 Communication & Integration

l Protocol Support: BACnet MS/TP or Modbus RTU for seamless integration with BMS, SCADA, and DCS systems.

l Optional Ethernet/IP or LonWorks: Enables flexible communication over industrial networks.

l Honeywell Ecosystem Compatibility: Works with Honeywell WEBs-N4, EBI, Spyder, and other automation controllers.

l Web-Based Configuration: Certain models feature embedded web servers for remote setup and monitoring.

Advanced Monitoring Features

l Real-Time Data Logging: Monitors critical process variables such as temperature, pressure, and humidity in real time.

l Alarm Management: Configurable alarms with relay, email, or SMS notifications for operational safety.

l Energy Monitoring: Tracks electrical consumption, kWh, and power factors to support energy efficiency goals.

Environmental & Electrical Ratings

l Operating Temperature: -40°C to 70°C (-40°F to 158°F) — ideal for extreme temperature applications.

l Humidity Range: 0–95% RH (non-condensing)

l Power Supply: 24VAC/VDC (±10%) or 120–230VAC (model dependent)

l Ingress Protection: IP20 (for indoor industrial use)

2.3 Installation & Configuration

l Mounting Options: DIN rail or screw-mounted for flexible installation in industrial environments.

l LED Indicators: Visual status LEDs for power, communication, and I/O activity.

l User-Friendly Setup: Simple configuration using rotary address switches or digital interfaces.

2.4 Safety & Compliance

l Certifications: UL, CE, and RoHS compliant.

l EMI/RFI Immunity: FCC Part 15 compliant.

l Isolation: Opto-isolated I/O channels to prevent electrical interference and ground loops.

3. Honeywell TC910A1066 Applications

The designers created the Honeywell TC910A1066 for many industrial and commercial uses. This system is excellent for continuous process monitoring, remote data collection, and precise control.

A. Commercial Buildings: Integrates with BAS systems for HVAC, chiller, and boiler control.

B. Industrial Facilities: Enhances safety and performance in chemical plants, refineries, and manufacturing plants.

C. Water Treatment Plants: Enables real-time control of pumps, valves, and analysers in distributed systems.

D. SCADA and DCS Systems: Provides centralised visibility and management of remote process operations.

E. PLCs and PACs: Operate as a modular extension in programmable logic controller or programmable automation controller setups.

F. HMI Integration: Supports human-machine interfaces for intuitive process visualisation and diagnostics.

4. Installation Process

l Select a suitable mounting location within a standard 4-inch junction box or industrial enclosure.

l Wire the module to the field I/O devices following the Honeywell installation manual.

l Set the module’s address using rotary switches for proper identification within the control network.

l Perform functional tests to verify communication with the central control panel, SCADA system, or PLC network.

5. Related Honeywell Modules

Other models in the same product family include:

Honeywell TC910A1001

Honeywell TC910A1002

Honeywell TC910A1003

6. Precautions Before Ordering

l Installation Environment: Ensure compliance with local electrical codes.

l Wiring: Follow the manufacturer’s wiring guides to avoid malfunction or damage.

l Configuration: Correctly set addressing and network parameters to ensure compatibility with SCADA, PLC, or DCS systems.

l Testing: Conduct verification tests to confirm the whole operation before deployment.

l Static Precautions: Use static-free environments during handling to prevent damage to sensitive electronics.
