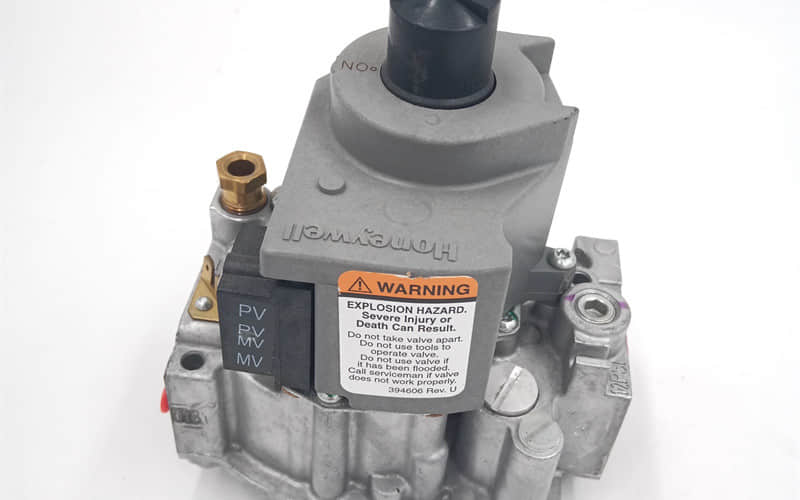

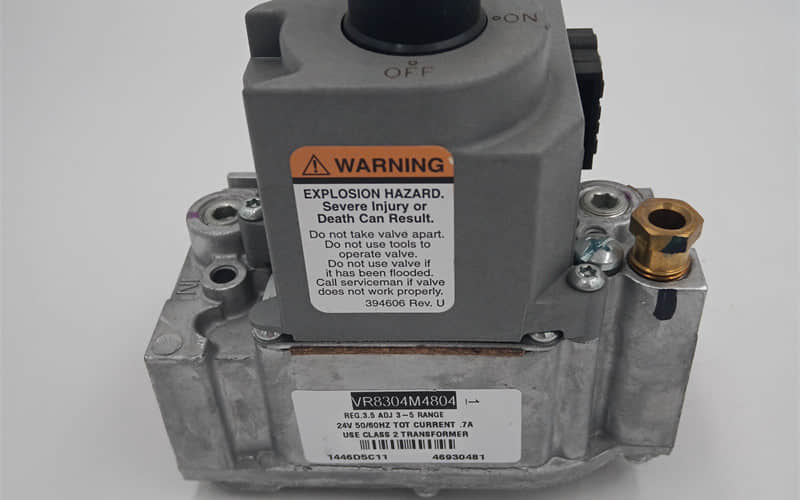

Honeywell Control Gas Combination Valve VR8304M4804

1.General Description

People also call the Honeywell VR8304M4804 the Honeywell Control Gas Combination Valve. People know it as the Honeywell VR8304M4804 Solenoid Valve or the Resideo Electric Solenoid Valve VR8304M4804.

This valve is a strong and compact gas control. This product designers designed it for 24 V AC gas-fired appliances.

 - It has a manual shut-off valve.

- It includes two automatic safety valves.

- There is a built-in pressure regulator.

- It also has a pilot outlet adjustment. This is all within a straight-through body design.

The Honeywell Boiler Gas Valve VR8304M4804 works with natural gas or converted LPG. It has a capacity of up to 300 ft³/hour. It can handle a range from 30 cfh to 415 cfh at a 1 in wc differential pressure.

The ignition gas solenoid valve ensures consistent outlet pressure during supply variations, meeting dual shut-off safety requirements. It operates reliably in ambient conditions from –40 °F to +175 °F (–40 °C to +79 °C).

You can operate valves manually—by handle, lever, pedal, or wheel—for maintenance or testing. For optimal performance, qualified HVAC professionals should handle installation and servicing.

2.Specification

l Model: VR8304M4804 Gas Valve, ½", 24 V, Natural Gas

l Series Equivalents: VR8300M4406/U, VR8304 Series

l Voltage: 24 V AC, 50/60 Hz

l Inlet/Outlet Size: ¾ in × ¾ in (other VR8304 sizes available)

l Capacity (Natural Gas): Up to ~415 ft³/hr (≈ 300 ft³/hr for ¾ × ¾ size)

l Minimum Capacity: ~30 ft³/hr

l Ambient Operating Temperature Range: –40 °F to +175 °F (–40 °C to +79 °C)

l Body Pattern: Straight-through design

l Functionality: Intermittent pilot ignition; includes manual shut-off valve, dual safety solenoids, built-in regulator, and pilot adjustment

l Regulators & Conversion: Standard-opening regulator for “M” suffix; convertible between natural and LP gas with appropriate kit

3.Application

People commonly use the Honeywell VR8304M4804 Gas Valve in gas appliances. These include boilers, furnaces, space heaters, unit heaters, and water heaters. This gas control system manages the gas flow to the pilot and main burner. It ensures safe ignition, stable burning, and pressure control.

As part of the Honeywell/Resideo combustion control series, it offers dependable performance for residential and light commercial systems. The VR8304M4804 and compatible models like VR8300M4406/U maintain consistent gas flow under varying supply conditions.

4.Our Product Line

Our company supplies a full range of Honeywell Combustion Control Series Products, including:

l Combustion Burner Program Controllers: FC1000A/B, R4343E/D, R4348, RA890G/F, EC7850, EC7823, EC/RM7800, TFI812, MMG810, MMI962, and more.

l Flame Signal Detectors & UV Tubes: C7027A, C7035A, C7044, C7012 series, C7061, C7076, IRD1020, UVZ770, etc.

l Gas Valves: VE4000, VE4050A1002, VE4080B1016, VQ450AB1007, VR8304M4804, VR8300M4406/U, and related solenoid valves.

l Valve Actuators and Bodies: V4055, V4062, V5055, V5011, V5049.

l Valve Leak Detectors: A4021A, ZL030001.

l Servo Motors & Butterfly Valves: MT4000, LKS series.

l Proportional Electric Actuators: M7284, M9484, ML7421, etc.

l Pressure Switches: L4006, L6006, L91B, L404, C6097A.

l High-Voltage Igniters: ZT930, ZT870, and others.

l Boiler and Wall-Hung Boiler Spares: CMT707, VK4105, VR4605, S4565, Q345, and more.

l Temperature Controllers: DC1020, UDC2500, UDC3300, and related models.
