A Guide to Siemens SIMATIC ET 200SP 6ES7132-6BH01-0BA0

1. Introduction

The Siemens 6ES7132-6BH01-0BA0 is a part of the Siemens SIMATIC ET 200SP system. A Digital Output Module with 16 outputs exists. Each output can handle 24VDC and 0.5A.

Engineers designed the ST (6ES7132-6BH01-0BA0) for high-performance industrial automation. This ET200SP 6ES7132-6BH01-0BA0 module provides 16 digital output channels, delivering reliable and precise signal control for modern automation environments.

Built for demanding industrial applications, the SIMATIC 6ES7132-6BH01-0BA0 offers exceptional noise immunity and robust mechanical design, ensuring long-term stability in harsh conditions.

Its small size makes it easy to connect with Siemens SIMATIC ET 200SP and S7-1200 PLC systems. This feature makes it a great choice for manufacturing, process control, and building management systems.

This guide looks at the main features, specifications, and benefits of the Siemens 6ES7132 6BH01 0BA0. It helps engineers see how it improves automation efficiency.

2. What is the Siemens 6ES7132-6BH01-0BA0?

2.1 Overview of the Product

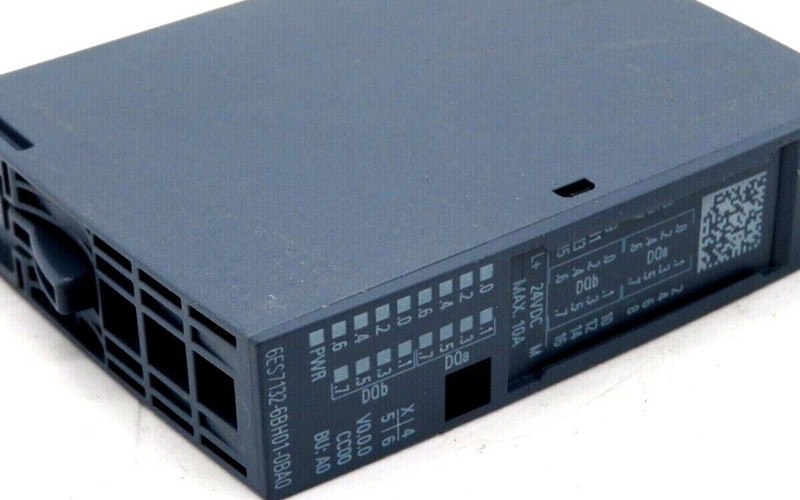

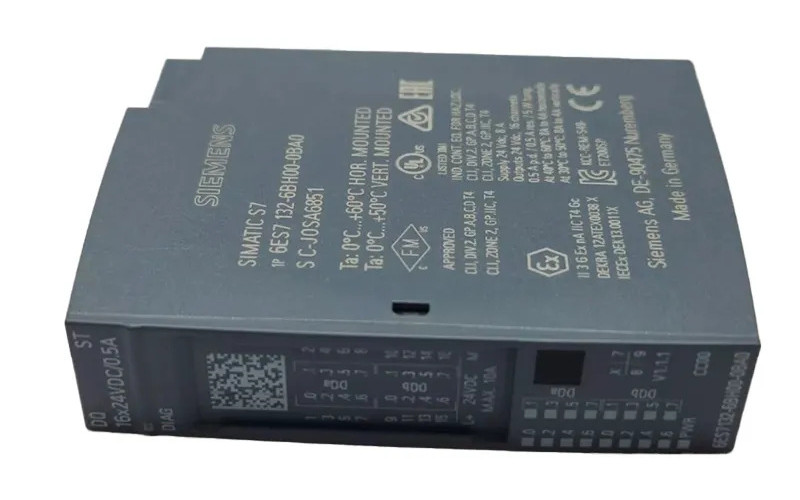

The Siemens SIMATIC ET 200SP 6ES7132-6BH01-0BA0 is a digital output module. It allows for precise control of devices like solenoids, relays, and indicator lamps.

As part of the ET 200SP series, the design supports modular scalability and optimizes space-saving installations.

The 6es7132 6bh01 0ba0 Siemens module features 16 outputs at 24V DC and a rated current of 0.5A per channel. It provides reliable operation in environments with electromagnetic interference, making it suitable for continuous operation in industrial control systems.

l 2.2 Key Specifications

l Channels: 16 digital output channels

l Voltage Range: 24V DC nominal

l Output Current: 0.5A per channel

l Mounting Type: DIN-rail (ET 200SP base unit)

l Protection: Integrated over-voltage and short-circuit protection

l Response Time: ≤ 10 ms

l Diagnostics: LED status for each channel

l Communication: PROFIBUS and PROFINET compatibility

l Temperature Range: -30°C to +60°C

l System Integration: Fully compatible with Siemens SIMATIC ET 200SP and S7-1200 PLC systems

l The et200sp 6es7132 6bh01 0ba0 module combines compact design and reliable performance, providing smooth communication within modular automation setups.

3. Features of the Siemens 6ES7132-6BH01-0BA0

The Siemens 6ES7132-6BH01-0BA0 enhances industrial control with 16-channel digital output capability, offering efficient and precise control of field devices.

Key Features:

l High Performance: Supports rapid switching for accurate digital control.

l Compact Design: Ideal for small enclosures and distributed I/O applications.

l Reliability: Built to meet industrial standards with extended operating life.

l Diagnostics: LED indicators for fast troubleshooting.

l Scalability: Compatible with other Siemens SIMATIC ET 200SP modules for modular system expansion.

The Siemens 6es7132 6bh01 0ba0 module increases reliability, simplifies maintenance, and optimizes automation control in diverse industries.

4. Applications of 6ES7132-6BH01-0BA0 in Industrial Automation

4.1 Use Cases in Programmable Logic Controllers

A. Manufacturing Line Control

In automated production lines, the SIMATIC 6ES7132-6BH01-0BA0 controls digital actuators, conveyor belts, and robotic arms. It ensures accurate process execution by providing reliable output signals to machinery components.

B. Process Control in Chemical Plants

This Digital Output Module DQ 16x24VDC/0.5A ST (6ES7132-6BH01-0BA0) interfaces with control valves, alarms, and safety relays. Its robust design prevents malfunction under high EMI and temperature variations.

C. Building Management Systems

The Siemens SIMATIC ET 200SP 6ES7132-6BH01-0BA0 enables intelligent control of lighting, HVAC, and access systems. Its high precision supports energy-efficient and safe building operations.

4.2 Benefits for Industrial Control Solutions

l Stable Operation: High noise immunity ensures reliability.

l Flexible Integration: Compatible with other ET 200SP modules and Siemens controllers.

l Real-Time Monitoring: Diagnostic LEDs simplify maintenance.

l Scalable Design: Fits seamlessly into distributed automation setups.

The Siemens 6es7132 6bh01 0ba0 is ideal for complex control environments that require fast, dependable digital output processing.

5. 6ES7132-6BH01-0BA0 Manual and Technical Information

5.1 Important Details to Note

Module Identity:

l 16-channel digital output module, 0.5 A per channel

l Width: 15 mm; Weight: approx. 30 g

l Color Code: CC00; Compatible Base Unit: Type A0

Power Supply:

l Nominal Load Voltage: 24 V DC (reverse-polarity protected)

l Power Dissipation: Approx. 1 W

Output Characteristics:

l Switching Frequency: Resistive load 100 Hz

l Short-circuit protection and inductive load support

Configuration & Diagnostics:

l Supported Protocols: PROFIBUS and PROFINET

l Set up via STEP 7, TIA Portal, or PCS 7 software

Diagnostics include short-circuit, parameter errors, and voltage loss

Environment:

l Operating Temp: -30°C to +60°C

l Galvanic isolation between the module and the backplane bus

5.2 Comparison with Other Modules

Module Type | Channels | Key Difference

6ES7132-6BH01-0BA0 | Digital Output | 16 | Standard version for general automation

6ES7132-6FB00-0BA0 | Digital Output | 16 | Enhanced EMI resistance for harsh environments

6ES7132-6CH00-0BA0 | Digital I/O | 16 | Supports both analog and digital signals

6ES7131-6CH01-0BA0 | Digital Input | 8–12 | Compact input version

Allen-Bradley 1734 Series | Digital Output | Varies | Compatible with Rockwell PLCs

The Siemens SIMATIC ET 200SP 6ES7132-6BH01-0BA0 provides superior integration with Siemens PLCs compared to cross-platform options. It offers the reliability and efficiency demanded by industrial control systems.
