Siemens FDM230 Fire Door Monitoring Device

1. General Description

The Siemens FDM230-CN Manual Alarm Button is a device from the Siemens 720 series. People use it for manual fire alarm activation and for monitoring fire doors. It meets the GB19880-2005 standard for "Manual Fire Alarm Button." Part of Siemens’ reliable 720 series fire safety line.

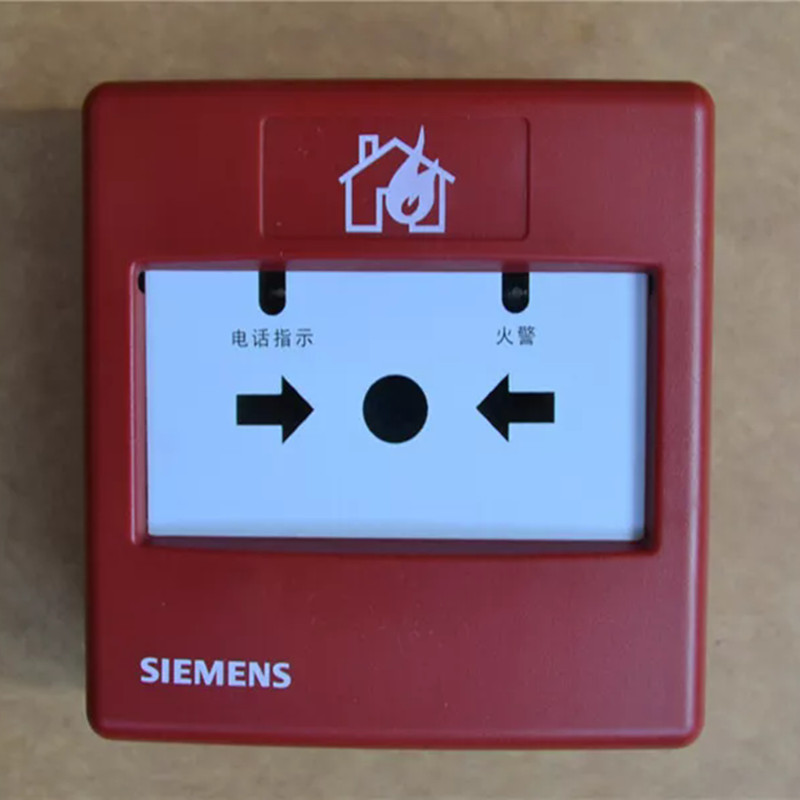

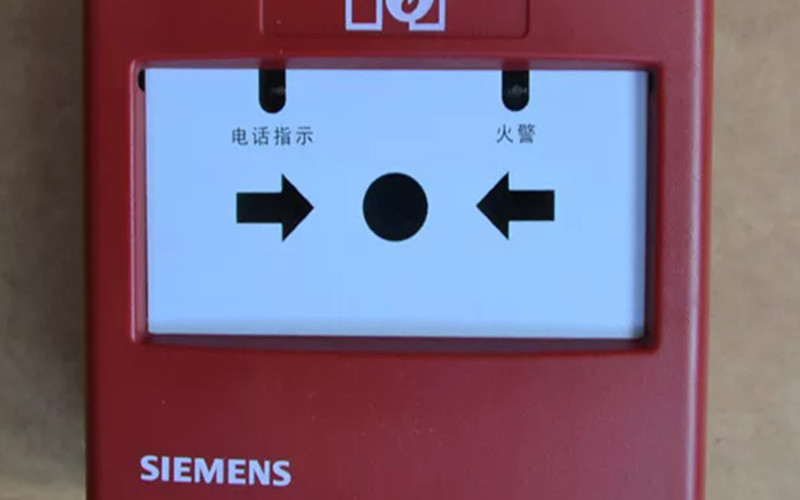

The SIEMENS FDM230-CN manual fire alarm has two functions. It works as a manual fire alarm call point and a door monitoring unit. It consists of two primary components: the manual call point (hand report) and a base. When pressed, it manually initiates a fire alarm signal, allowing rapid human intervention during fire emergencies.

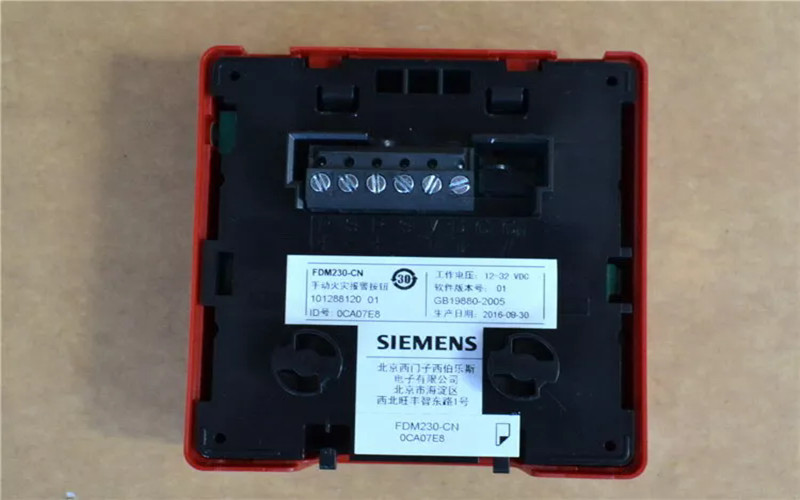

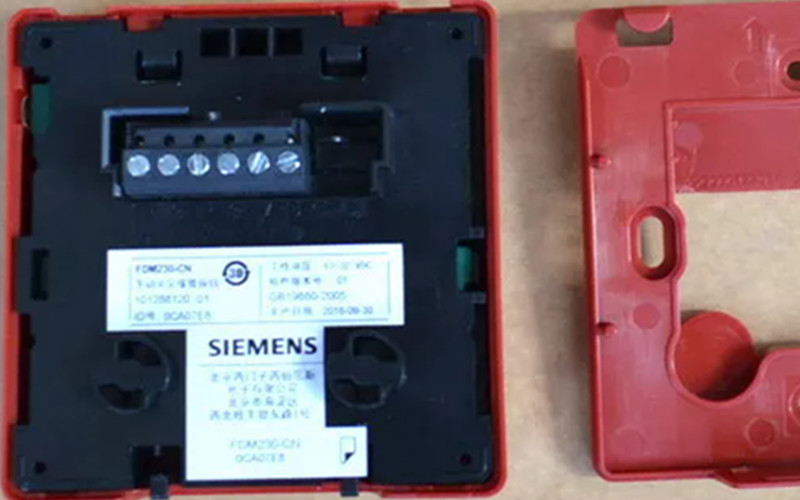

Each FDM230-CN unit has its own address. The system sets this address automatically, so you do not need an encoder or DIP switch. It communicates directly with Siemens controllers such as the FC720-CN and FS1120 series via C-NET communication. The device has a built-in 3.5 mm phone jack for direct communication in emergencies.

It also includes a tear-off coding sticker on the product label. This sticker makes engineering installation and debugging easier.

The FDM230-CN offers a resettable press-type design, allowing easy restoration after activation. Siemens offers an intelligent fire detection system. It works well with other parts, like the FDHM230-CN Hydrant Manual Call Point and FDM223-EX models. This helps ensure complete fire safety management in buildings.

2. Technical Specifications of Siemens FDM230 / FDM230-CN

l Manufacturer: Siemens

l Model: FDM230 / FDM230-CN

l Type: Fire Door Monitoring Device / Manual Fire Alarm Button

l Input Voltage: 12 V DC / 24 V DC

l Power Consumption: 2 W

l Communication Protocol: RS-485 / C-NET (for Siemens fire control systems)

l Dimensions: 90 mm × 75 mm × 32 mm

l Operating Temperature: –10°C to +55°C

l Humidity: 10% to 95% non-condensing

l Mounting Type: Wall-mounted

l Certification: EN 54 compliant

l Weight: 150 grams

3. Detailed Features of Siemens FDM230-CN Manual Alarm Button

1. Dual Functionality – Fire Door Monitoring and Manual Alarm Activation

The Siemens FDM230-CN works as a fire door monitor and a manual alarm button. Users can trigger alarms manually. It also keeps track of whether fire doors are open or closed.

2. Advanced Door Status Detection

The FDM230 accurately detects where fire doors are — open, closed, or partially open. This helps find safety risks and stops the spread of fire or smoke.

3. Seamless System Integration

The FDM230-CN is part of the Siemens 720 series. It connects directly to Siemens fire control systems like FC720-CN and FS1120. This connection ensures real-time alarm communication and a synchronized emergency response.

It works well with related products. These include the [FDHM230-CN Hydrant Manual Call Point](//about:blank/link_1) and the [FDM223-EX Siemens](//about:blank/link_2). This improves system coordination.

4. User-Friendly Operation and Reset

The manual alarm button FDM230-CN features a press-type activation mechanism that can be easily reset using a key. Its intuitive interface simplifies testing, maintenance, and operation.

5. Reliable and Durable Design

Constructed from high-quality fire-resistant materials, the Siemens FDM230 Fire Door Monitoring Device ensures consistent performance under demanding conditions. Its robust housing offers long-term reliability in both commercial and industrial settings.

4. Applications of Siemens FDM230 / FDM230-CN

The Siemens FDM230-CN Manual Alarm Button suits different places. People use it for manual fire alarm activation and door monitoring, such as:

Commercial Buildings: Offices, shopping malls, hotels, and business centers where compliance with fire safety standards is critical.

Industrial Facilities: Factories, warehouses, and plants needing rugged and responsive fire alarm controls.

Hospitals and Clinics: Ensures safe evacuation and rapid alert during emergencies.

Educational Institutions: Schools, universities, and laboratories where prompt alarm activation and monitoring are vital.

Hydrant Systems: Compatible with FDHM230-CN Hydrant Manual Call Point units for integrated hydrant alarm operations.

5. Installation of Siemens manual fire alarm FDM230-CN

A. Mounting: Install the FDM230-CN securely on a stable wall surface using standard mounting brackets.

B. Wiring: Connect the unit to the 12 V DC or 24 V DC power supply. Also, connect it to the C-NET communication bus following Siemens installation guidelines.

C. Configuration: Automatically assigns its address upon system detection — no manual DIP switch settings required.

D. Testing: Perform operational tests to verify proper alarm signaling and door monitoring functionality.

E. Maintenance: Regularly inspect, clean, and test the unit. After activation, reset the manual fire alarm button with the key provided.

6. Related Part Numbers of Siemens 720 series fdm230-cn manual alarm button

l Siemens FDM231: Advanced version with enhanced monitoring and display features.

l Siemens FDM235: Fire door monitoring device with higher sensitivity sensors.

l Siemens FDM240: Industrial-grade version for harsh environments.

l FDM223-EX Siemens: Explosion-proof variant for hazardous zones.

Siemens HI720-CN Heat Detector

Siemens FDM183 Manual Call Point
