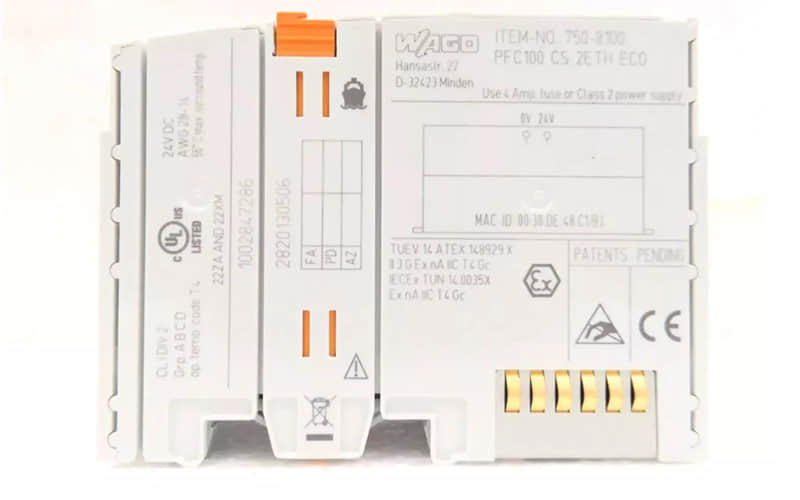

WAGO 750-8100 Controller PLC Module

General Description:

The WAGO 750-8100 is a versatile and high-performance Programmable Logic Controller (PLC) module designed for industrial automation and control systems. It features a modular design, allowing for flexible configuration and scalability to meet the specific needs of various applications. Its robust construction and advanced functionality make it ideal for use in demanding industrial environments, ensuring reliable performance and seamless integration.

Technical Specifications of 750-8100 :

- Processor: 32-bit ARM Cortex-M

- Clock Speed: 72 MHz

- Memory: 128 KB RAM, 1 MB Flash

- Communication Interfaces: Ethernet, RS-232, RS-485

- Operating Temperature: -25°C to +60°C

- Power Supply: 24 V DC

- Dimensions: 100 mm x 130 mm x 65 mm

- Weight: 400 g

Features:

- Modular I/O system for flexible configuration

- Supports multiple communication protocols for seamless integration

- Robust design for harsh industrial environments

- Easy programming with WAGO-I/O-PRO software

- Integrated diagnostics and monitoring capabilities

Applications of 750-8100 :

- Industrial automation and control systems

- Process control in manufacturing and production

- Building automation and energy management

- Transportation and infrastructure systems

Installation Procedure (Step by Step):

1. Mounting: Using the mounting clips, secure the WAGO 750-8100 onto a DIN rail.

2. Power Connection: Connect the 24 V DC power supply to the designated terminals, ensuring proper polarity.

3. Communication Setup: Connect the required communication cables (Ethernet, RS-232, or RS-485) to the appropriate ports.

4. I/O Module Installation: Attach the required I/O modules to the controller as per the application needs.

5. Grounding: Ensure proper grounding of the controller to avoid electrical interference.

6. Configuration: Use WAGO-I/O-PRO software to configure the controller and set up communication protocols.

7. Testing: Power on the system and verify functionality through diagnostics and monitoring tools.

Related Part Numbers of 750-8100:

- 750-600: Power Supply Module

- 750-430: Digital Input Module

- 750-530: Digital Output Module

- 750-460: Analog Input Module

Previous:  WAGO 750-881 PLC Ethernet Controller
