Yokogawa EJX430A Gauge Pressure Transmitter: Complete Technical & Selection Guide

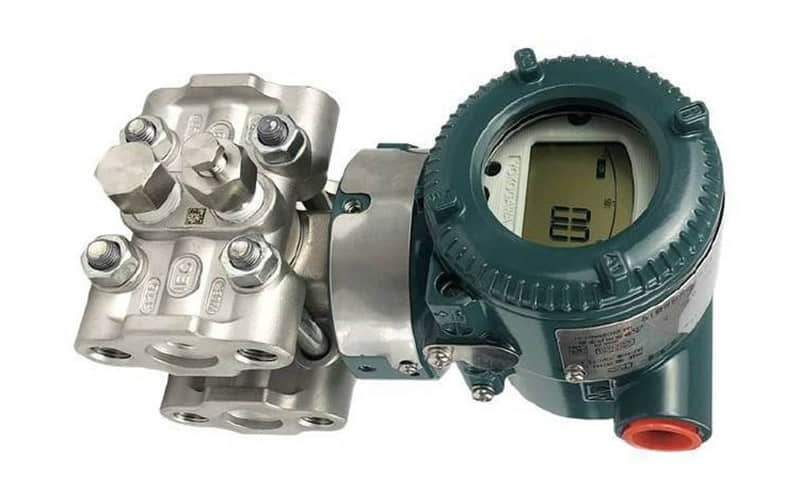

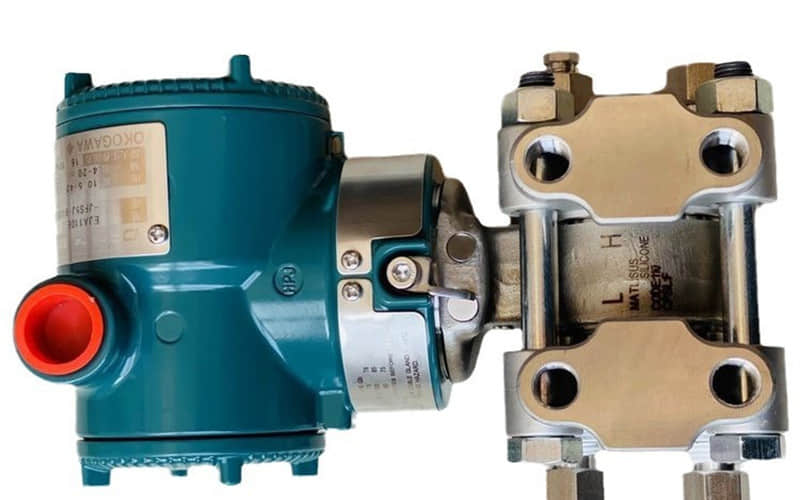

Yokogawa EJX430A

Yokogawa EJX430A

Published: July 28, 2026

Author: Technical Engineering Team | Xiamen ZYM Automation & Control Co., Ltd. (A Division of Xiamen Zhenyoumei Display Products Co., Ltd.)

Last Updated: July 2026

< data-path-to-node="4" style="font-family: "Google Sans Text", sans-serif !important; line-height: 1.15 !important; margin-top: 0px !important; margin-left: 0px !important; margin-right: 0px !important;">

Executive Summary: Looking for high-precision pressure measurement in aggressive industrial environments? This comprehensive technical guide covers the Yokogawa EJX430A gauge pressure transmitter, detailing its single-crystal silicon sensor technology, technical specifications, installation protocols, and related Yokogawa instrumentation.

Table of Contents

1. General Description & Sensing Technology

2. Key Technical Specifications & Datasheet

3. Core Architectural Features

4. Industrial Application Sectors

5. Installation, Wiring & Calibration Protocols

6. Yokogawa EJX430A vs. EJX530A Comparison

7. Frequently Asked Questions (FAQ)

8. Related Part Numbers & Ecosystem Alternatives

9. Request a Quick Quote

1. General Description & Sensing Technology

The Yokogawa EJX430A is an industry-trusted gauge pressure transmitter designed to measure liquid, gas, or steam pressures reliably within aggressive industrial settings.

At its core, the device utilizes Yokogawa’s proprietary single-crystal silicon sensor. This advanced element minimizes thermal drift and mechanical hysteresis, providing superior long-term stability. The transmitter outputs a proportional 4 to 20 mA DC analog signal alongside superimposed digital communications via HART® or BRAIN™ protocols, allowing operators to perform remote setup, loop calibration, and health diagnostics efficiently. Built with rugged stainless steel wetted components, the EJX430A is specifically optimized for high-pressure industrial applications requiring strict compliance and durability.

2. Key Technical Specifications & Datasheet Overview

Review these precise electrical, physical, and performance parameters to verify switchgear and loop compatibility:

ParameterTechnical Specification
Model SeriesYokogawa EJX430A Gauge Pressure Transmitter
Measurement TypeGauge pressure of liquid, gas, or steam
Measuring Range0.08 to 16 MPa
Base Accuracy+-0.04%of span (optional high-precision grade: +-0.025%
Long-Term Stability+-pm0.1 per15 years
Step Response Time90 milliseconds
Output Signal4 to 20 mA DC with digital communication
Burst Pressure Limit69 MPa (10,000 psi)
Zero Adjustment LimitsFully adjustable within capsule range limits
Wetted Parts MaterialsStainless steel or Hastelloy C options
Process ConnectionsStandard industrial flanges and threaded fittings
Mounting StyleTraditional bracket or direct process mount
Power Supply Voltage10.5 to 42 VDC
Communication ProtocolsBRAIN™, HART® (HART 7 protocol options)
Enclosure Protection RatingIP66 / IP67
Safety CertificationsSIL 2/3 certified by Exida and TÜV

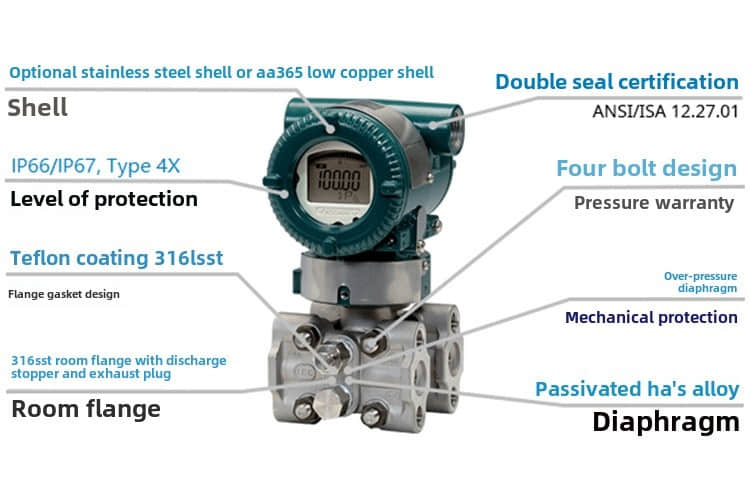

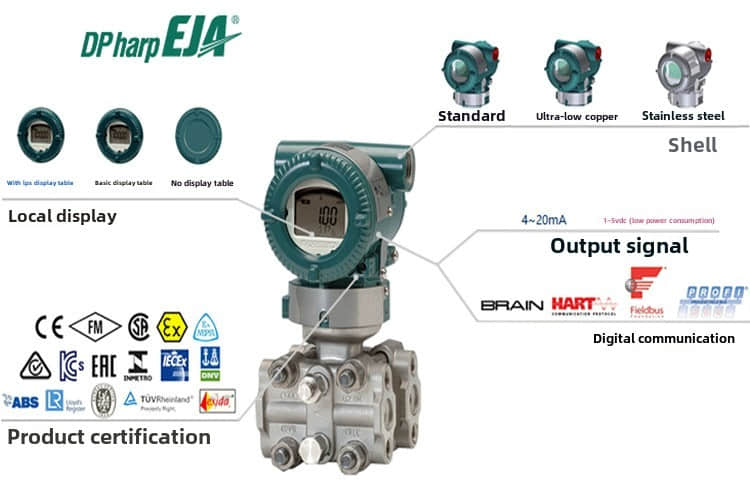

3. Core Architectural Features

  • Single Crystal Silicon Resonant Sensor: Delivers exceptional thermal immunity, minimal baseline drift, and high-speed response under fluctuating process conditions.

  • High-Performance Stability: Maintains an industry-leading stability metric of $\pm0.1\%$ over a 15-year operational window, significantly reducing routine maintenance and recalibration overhead.

  • Robust Stainless Steel Construction: Wetted parts crafted from high-grade corrosion-resistant alloys, ensuring mechanical integrity in offshore and chemical processing atmospheres.

  • Advanced Digital Diagnostics & Remote Configuration: HART and BRAIN protocols enable continuous device monitoring, loop verification, and parameter adjustments without opening the housing enclosure.

  • Safety Instrumented System Integration: Independent SIL 2/3 certification makes the transmitter an ideal choice for safety-critical loops and emergency shutdown (ESD) architectures.

  • Flexible Signal Characterization: Includes a built-in 10-segment signal characterizer for non-linear tank strapping or specialized 4–20 mA output scaling.

4. Industrial Application Sectors

The EJX430A transmitter is deployed globally across continuous process industries demanding high accuracy:

  • Oil & Gas Upstream & Midstream: Wellhead monitoring, separator pressure control, and high-pressure pipeline transmission lines.

  • Chemical & Petrochemical Processing: Corrosive liquid and reactive gas pressure loops.

  • Power Generation Utilities: High-pressure steam tracking, boiler feedwater control, and turbine auxiliary lines.

  • Pharmaceutical & Food Processing: Hygienic skids and utility monitoring requiring rigorous measurement repeatability.

  • Water & Wastewater Treatment: Municipal filtration networks, booster pump stations, and deep-well level/pressure tracking.

5. Installation, Calibration & Lifecycle Maintenance

  • Mechanical Mounting: Secure the transmitter firmly to a rigid pipe or surface bracket, ensuring it is isolated from heavy vibrations. Prevent stray welding currents from passing through the unit's electronics.

  • Process Connection & Sealing: Thread or flange the unit securely to the process tap. Inspect and seat all gaskets correctly to prevent high-pressure leaks.

  • Electrical Wiring: Route shielded twisted-pair cables into the housing terminals. Verify correct polarity for the 24 VDC power supply and 4–20 mA current loop.

  • Zero & Range Calibration: Perform initial zero-point balancing and span configuration using a certified HART communicator or BRAIN terminal.

  • Post-Installation Verification: Check that output current responses scale linearly with applied process pressure changes.

6. Yokogawa EJX430A vs. EJX530A Comparison

| Feature | Yokogawa EJX430A | Yokogawa EJX530A |

| Design Style | Traditional / Diaphragm Seal Capable | Compact Direct In-line Mount |

| Max Pressure Range | Up to 16 MPa | Up to 50 MPa |

| Best Used For | Flanged installations, harsh fluids, diaphragm seal setups | Tight spaces, direct line piping, standard gas/water lines |

| Accuracy Grade | Up to ±0.025% | Up to ±0.04% |

7. Frequently Asked Questions (FAQ)

Q1: What is the primary difference between Yokogawa EJX430A and EJA430E?

A: The EJX430A is Yokogawa’s flagship high-performance series featuring faster response time (90 ms vs 150 ms), higher accuracy (±0.04% vs ±0.055%), and longer stability (15 years vs 10 years) compared to the standard EJA-E series.

Q2: Can the EJX430A transmitter be configured remotely?

A: Yes, using standard HART® 7 or BRAIN™ field communicators, Yokogawa FieldMate software, or FDT/DTM frame applications, engineers can adjust span, zero point, damping, and alarm parameters remotely.

Q3: Where can I download the official Yokogawa EJX430A manual and datasheet PDF?

A: You can request complete technical specification sheets, wiring schematics, and official manuals directly by emailing our technical support desk at [email protected].

8. Related Part Number

To support complete bill-of-materials (BOM) management and plant retrofits, consider these complementary Yokogawa pressure instruments:

  • EJX430A: Standard model Gauge Pressure Transmitter

  • EJX530A: Advanced compact variant for extended measuring ranges and high-pressure spaces

  • EJX110A: High-performance Differential Pressure Transmitter

  • EJA510A: Absolute Pressure Transmitter

  • EJA110A / EJA115E / EJA118: Legacy and specialized differential pressure series

9. Request a Quick Quote

Deploying field-proven instrumentation like the Yokogawa EJX430A guarantees high-integrity data acquisition, regulatory compliance, and long-term process optimization. At Xiamen ZYM Automation & Control Co., Ltd. (A Division of Xiamen Zhenyoumei Display Products Co., Ltd.), we supply 100% authentic, factory-sealed Yokogawa transmitters and automation components backed by expert engineering support.

Guarantees: 100% Original Equipment | Factory Calibration Certificate Included | 12-Month Warranty | Fast Global Shipping

    Need this exact model or custom specifications?
