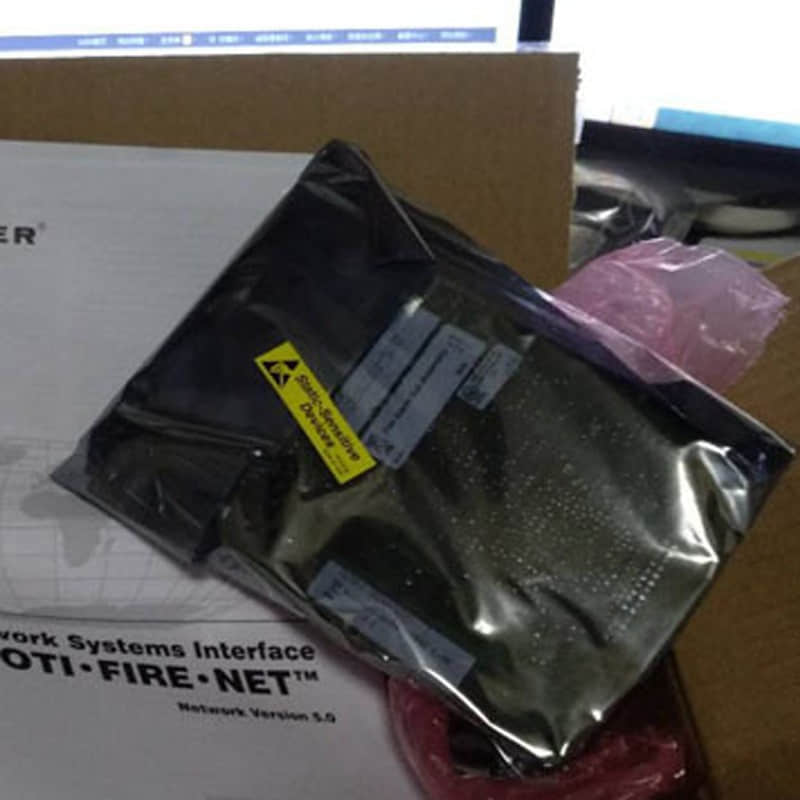

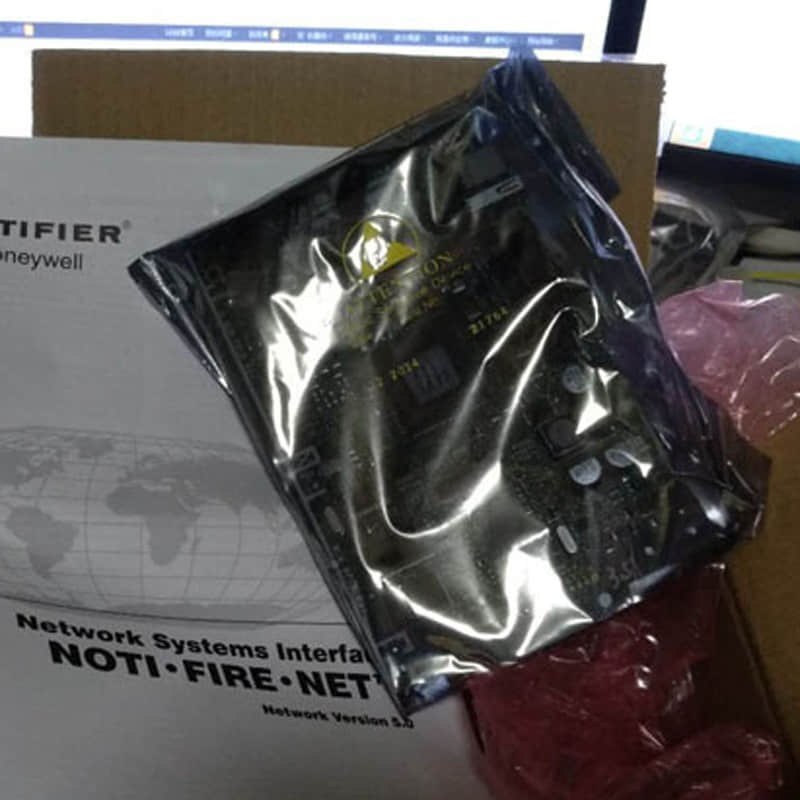

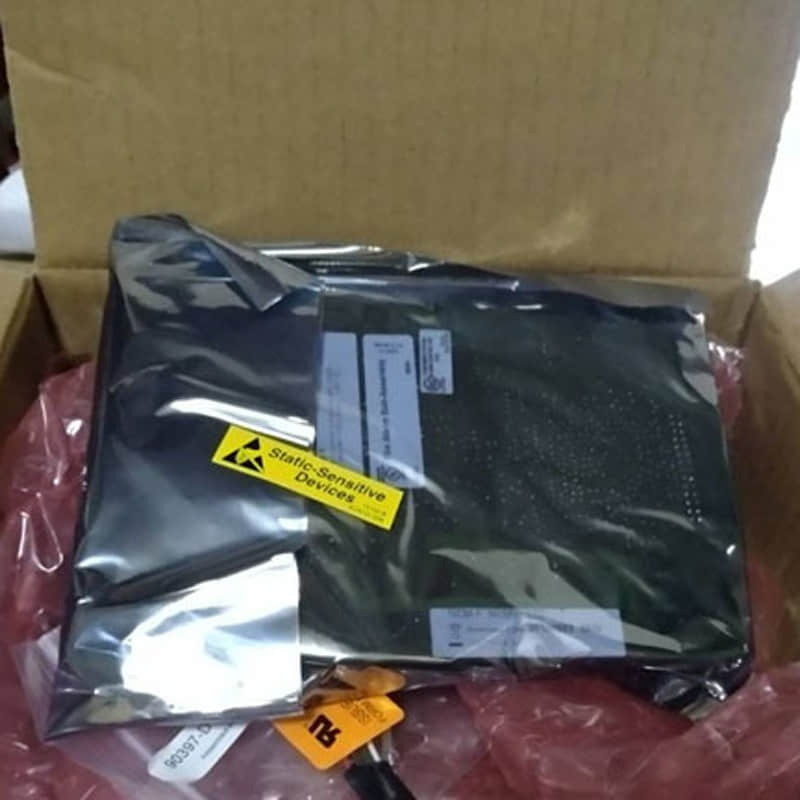

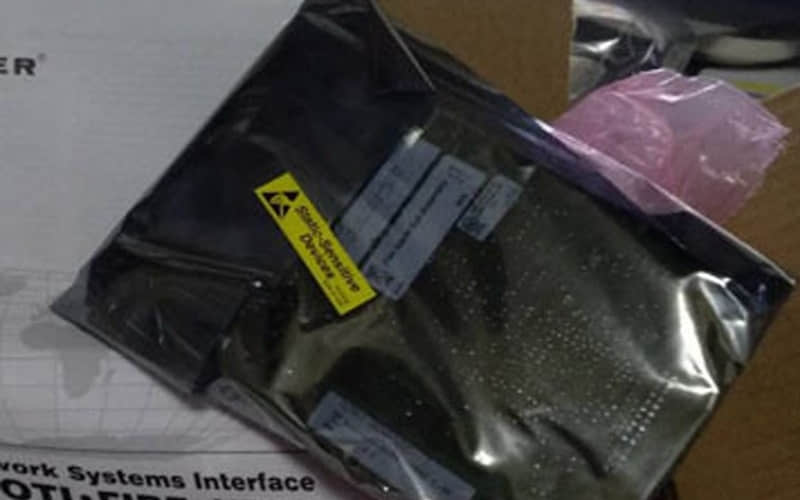

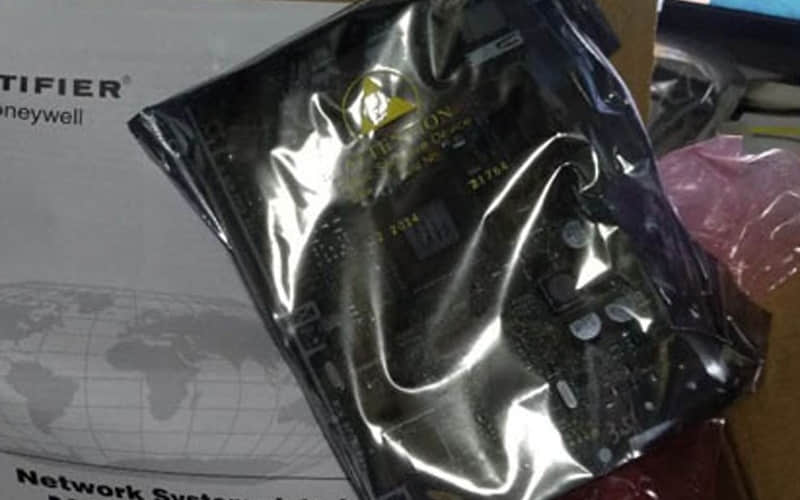

Notifier Dual Bonding Web Card NCM-W

The Notifier Dual Bonding Web Card NCM-W is also known as the Dual NCM-W. A High-Speed Network Communications Module exists. Manufacturers design it for use with Intelligent Fire Alarm Control Panels. It enables the connection of nodes with twisted pair wire and provides robust networking options for fire alarm systems.

The NFS-640 does not require this interface card as a standalone unit. You need to set up one NCM-W network card. This is necessary when connecting to other controllers or Network Control Stations (NCS) in a network.

The NCM-W is for twisted pair cables. The communication distance depends on the type of wire. The maximum distance is about 900 meters.

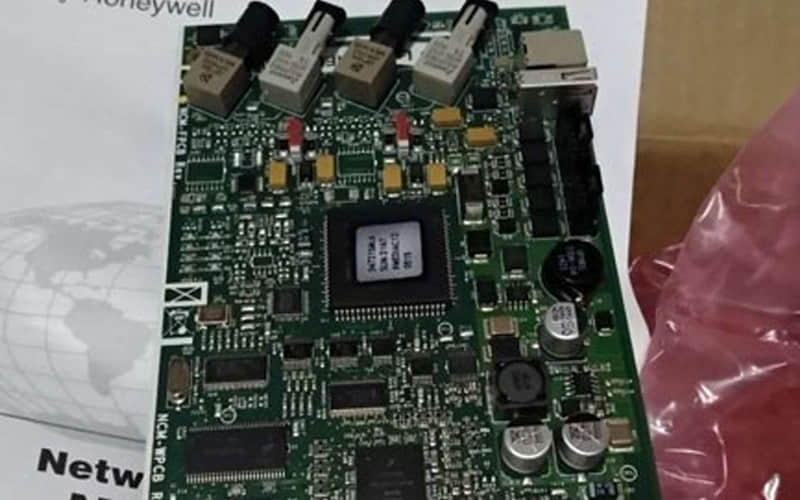

Use the Notifier NCM-F for fiber optic connections. The NCM-F utilizes 62.5-micron multimode fiber optic cable with an 8dB signal attenuation. Network layouts can be ring, non-ring, or star. If a fiber optic cable network card is required instead of twisted pair network cards, specify NCM-F.

If there is no need for networking, the card is not required.

1. General Description

l The Notifier NCM-W provides essential network connection capabilities for fire alarm systems, ensuring reliable communications. It supports NFPA Style 7 Class A operation and Style 4 (Class B), covering all criteria for compliance.

l The module’s design regenerates data at each node. This keeps a strong signal over long distances. This feature makes the NCM cards suitable for demanding installations.

2. Technical Specifications of NCM-W

l Medium: Twisted-pair wire

l Transmission Rate: 312.5 Kbaud

l Operating Temperature: 0°C to 49°C (32°F to 120°F)

l Power Requirements: 24 VDC, 0.11 amps

l Maximum Distance Between Nodes: Up to 3,000 feet (914.4 m)

l Interconnections: Two network ports for simultaneous connections

l Electrical Isolation: Transformer coupling

3 . Detailed Features of NCM-W

A. Programmable Data Thresholds: Two thresholds for enhanced performance.

 B. Pluggable Terminal Wiring: Simplifies installation and maintenance.

 C. Ground Fault Detection: Dedicated switches for a more straightforward setup.

 D. Service Connector: Enables feed-through when someone removes power.

 E. Data Regeneration: Ensures reliable communication across extended distances.

4. Applications of NCM-W

The Dual NCM-W is ideal for:

A. Fire Alarm Control Panels: Provides reliable networking for annunciators and control panels.

B. Industrial Facilities: Ensures secure fire safety networks in critical sites.

C. Commercial Buildings: Enhances communication between multiple safety nodes.

D. Educational Institutions: Supports the integration of fire alarm systems across campuses.

5. Installation Guidelines

Preparation:

l Verify compatibility with existing fire alarm control panels.

l Gather required tools (screwdriver, wire strippers, etc.).

Mounting the Module:

l Install the NCM-W in a CAB-3/CAB-4 compatible chassis or BMP-1 blank plate.

l Ensure secure fastening to prevent movement.

Wiring Connections:

l Connect twisted pair cables to designated terminals.

l Follow polarity and wiring guidelines.

Power Connection:

l Connect the power supply at the proper voltage levels.

Configuration and Testing:

l Use programming software via the network connection.

l Conduct communication tests across all connected nodes.

6. Related Products and References

l Notifier NCM-F (Fiber optic version)

l CB-DUAL-BON – related part for dual dual-bonded DSL modem or to bond two wireless connections

l MIB-W (Multimedia Interface Board)

l NAM-232W (Network Annunciator Module)

l RPT-W (Repeater Module)
