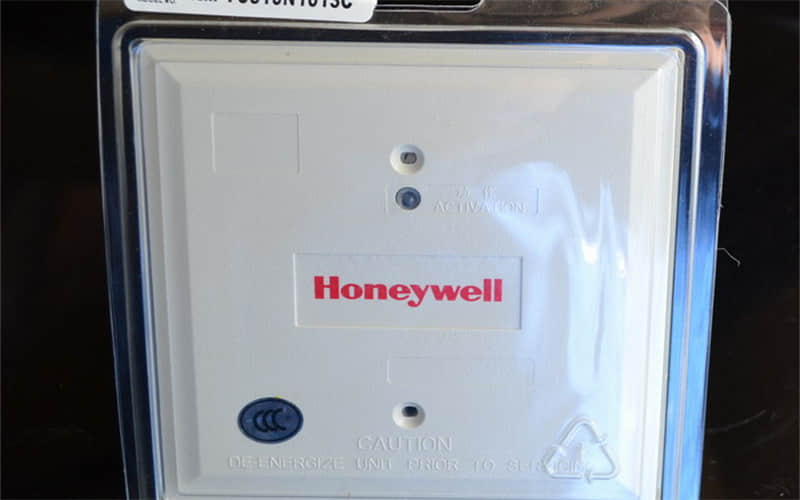

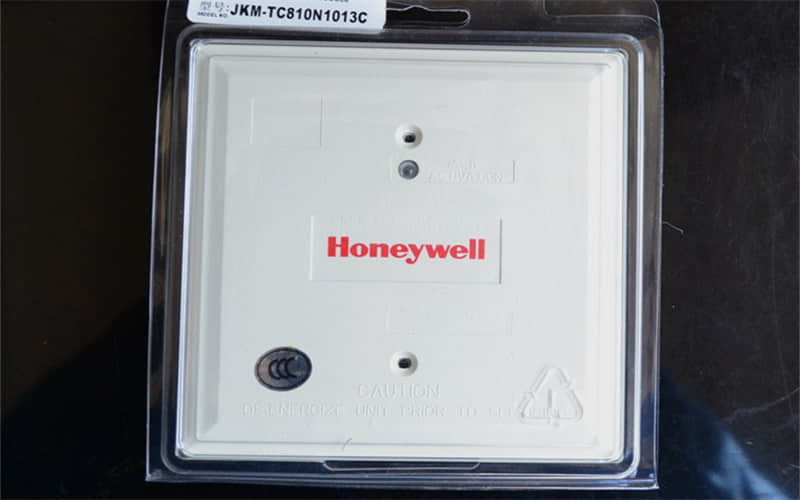

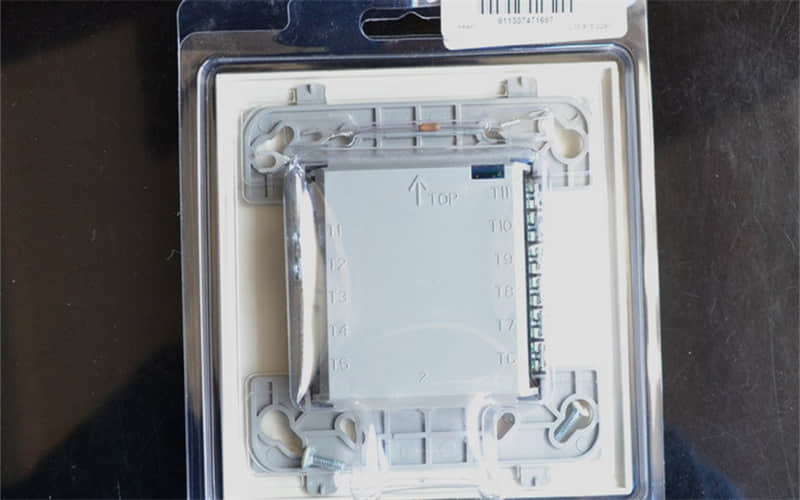

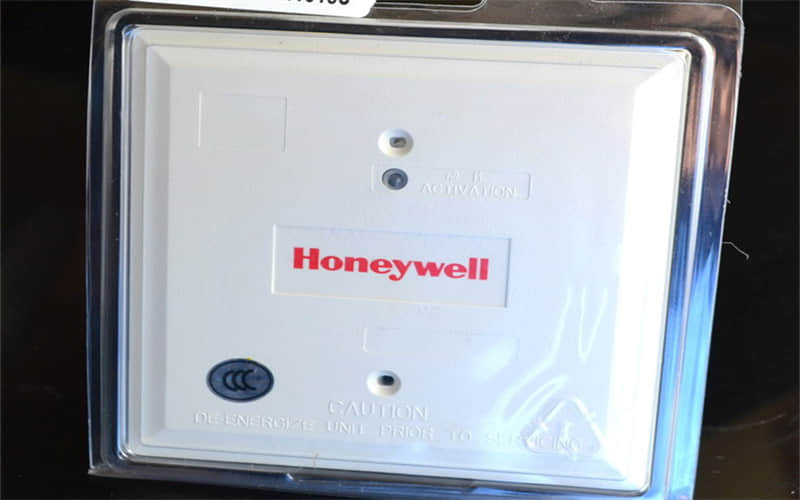

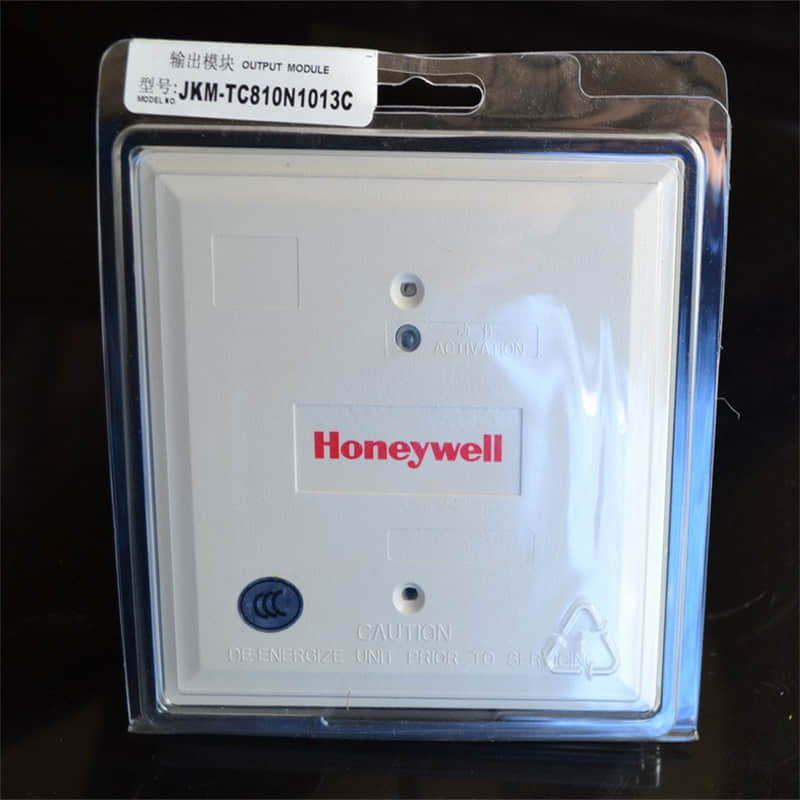

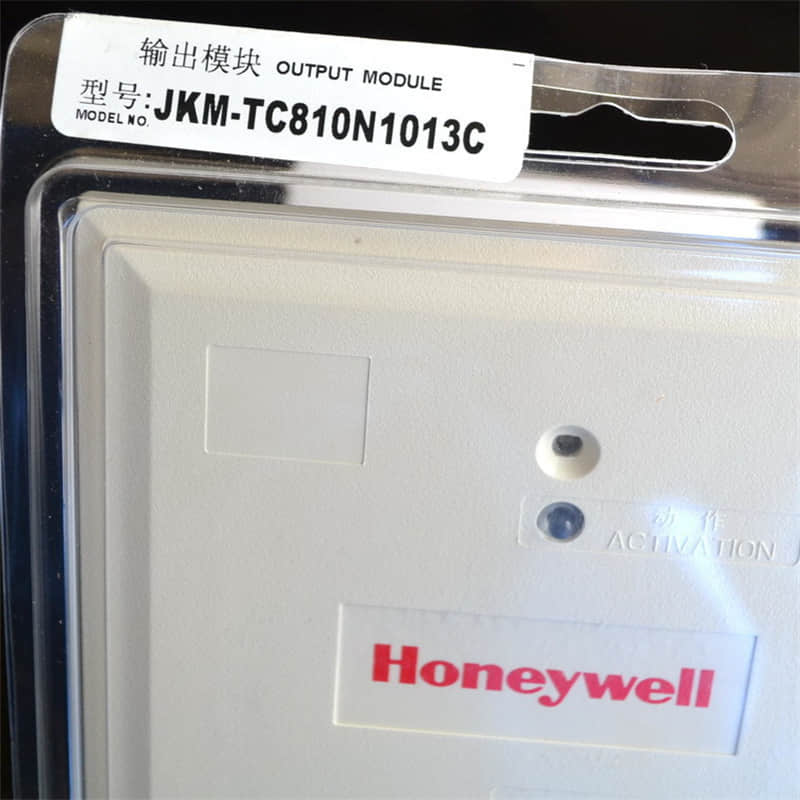

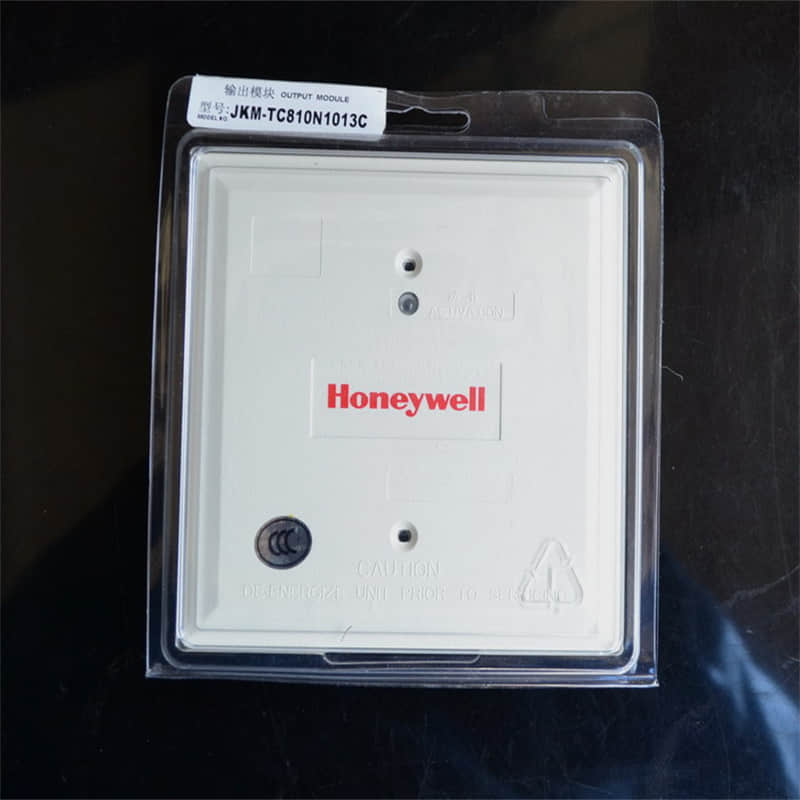

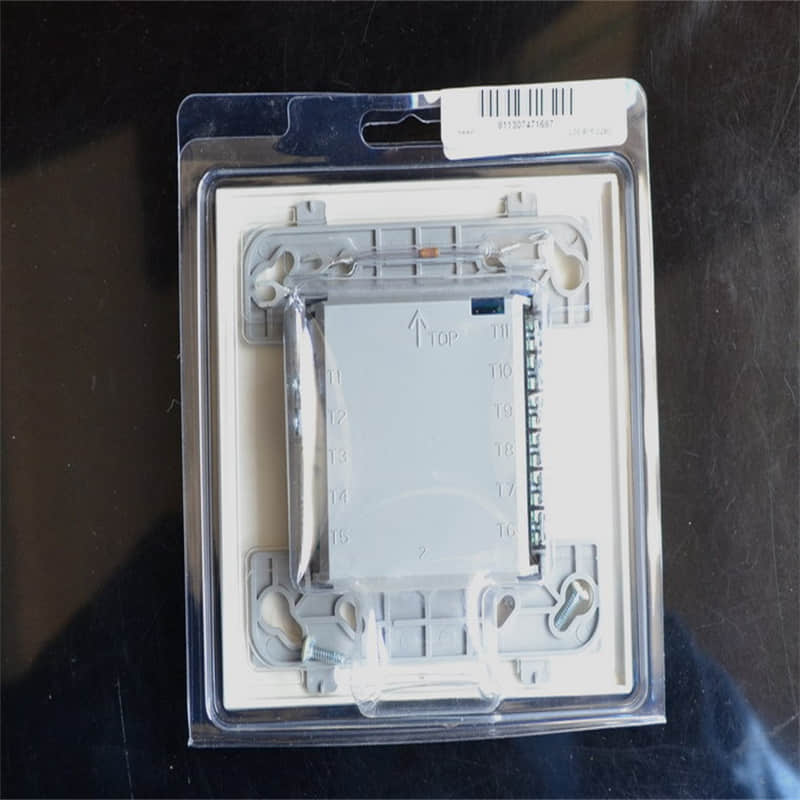

Honeywell JKM-TC810N1013C Monitoring Module

General Description

The Honeywell JKM-TC810N1013C Monitoring Module is designed for use in intelligent fire alarm systems. This module facilitates the supervision of notification appliances, ensuring they operate correctly and efficiently. It can switch external power supplies. It also monitors connected devices in real-time and reports their status to the control panel.

Technical Specifications of Honeywell JKM-TC810N1013C

l Standard Operating Voltage: 15 to 32 VDC

l Maximum Current Draw: 6.5 mA (LED on)

l Operating Current:

n 375 μA (LED flashing, Group Poll)

n 350 μA (LED flashing, Direct Poll)

n 485 μA (LED flashing, NAC Shorted)

l Maximum NAC Current Ratings:

n Class B wiring: 3A

n Class A wiring: 2A

l Temperature Range: 32°F to 120°F (0°C to 49°C)

l Humidity Range: 10% to 93% non-condensing

l Dimensions: 4.675” H x 4.275” W x 1.4” D (mounts to a 4” square by 2⅛” deep box)

l Accessories: Compatible with SMB500 Electrical Box; CB500 Barrier

l Standards Compliance: UL is listed as a commercial proprietary burglar alarm accessory

Detailed Features of Honeywell JKM-TC810N1013C

The JKM-TC810N1013C includes:

Intelligent Two-Wire Compatibility: Designed for seamless integration into intelligent fire alarm systems.

Rotary Decade Switches: Simplifies the process of setting individual module addresses.

l Fault Monitoring Capabilities: Supervises connected notification appliances and reports their status as NORMAL, OPEN, or SHORT CIRCUIT.

l Panel-Controlled LED Indicator: Provides visual feedback regarding module status.

Applications of Honeywell JKM-TC810N1013C

The Honeywell JKM-TC810N1013C Monitoring Module is widely utilized in various sectors, including:

1. Commercial Buildings: Ensures fire alarm systems operate effectively by monitoring notification appliances.

2. Industrial Facilities: Monitors critical safety equipment and alerts personnel to any issues.

3. Residential Complexes: Enhances fire safety by supervising alarms and notifications in residential settings.

The module helps where clear communication is needed. This is important between the fire alarm control panel and the notification devices. It plays a crucial role in ensuring alarms are activated promptly and faults are detected immediately.

Installation

The JKM-TC810N1013C connects to the fire alarm system’s control panel. Use the specified wiring configurations for installation. The module mounts directly to a standard electrical box and should be installed according to local codes and regulations. Proper wiring practices must ensure optimal performance and compliance with UL requirements.

Related Part Numbers

Honeywell JKM-TC810N1012B Input Module

l Honeywell JKM-TC810N1014D Output Module

For more models or part numbers that you are interested in, please refer to the following:

Honeywell TC809B1008 Monitor Module

Honeywell TC810A1056 Control Module

Honeywell TC811A1006 Fault Isolator Module
