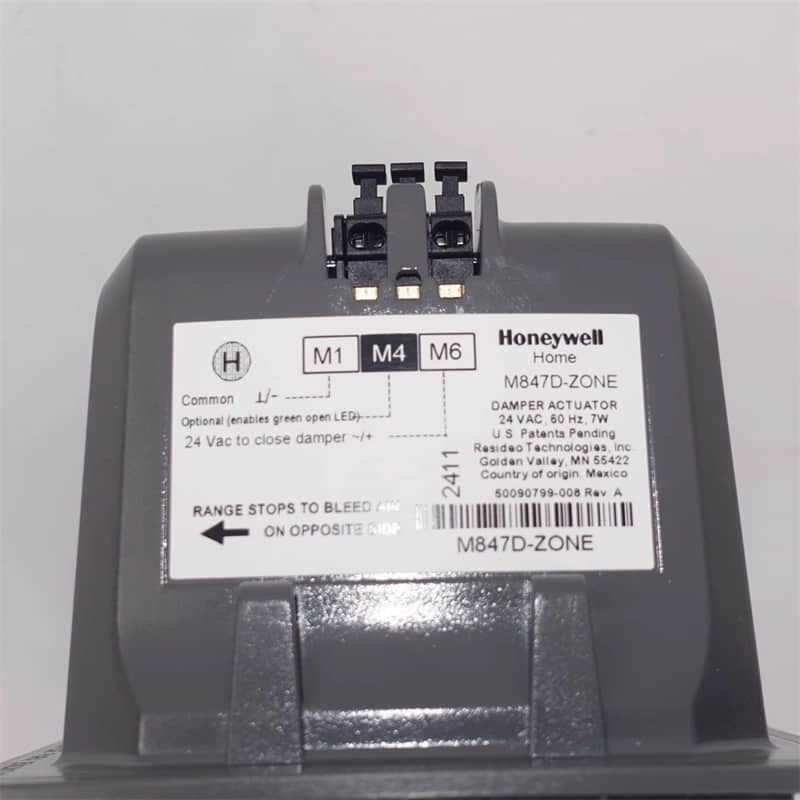

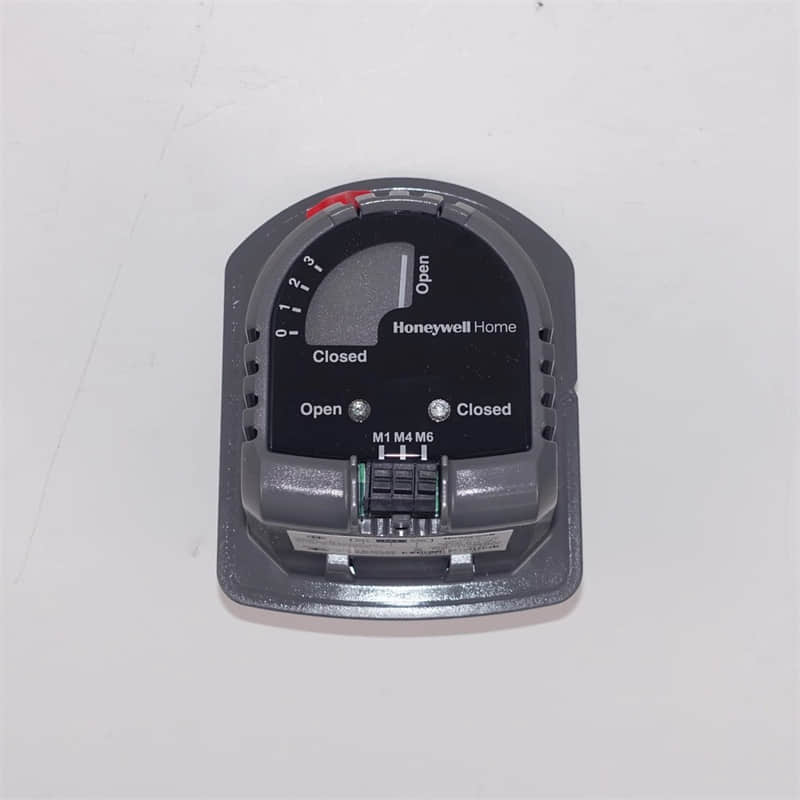

1. General Description
People also call the Honeywell M847D Zone Valve Actuator the Honeywell M847D Zone Damper Actuator. People know it as M847D-ZONE or Honeywell Home M847D Zone.
This actuator works with low voltage and has a spring return. It controls hydronic heating and cooling systems.
It gives you precise control of water or air flow. You achieve this through zone valves or zone dampers. It helps regulate temperature efficiently in different areas.
This two-position, spring-return actuator works at 24 VAC. Quiet and uses little power.
The M847D Honeywell Zone Damper has a strong design. It works with ARD, EARD, and ZD residential zone dampers. This makes it great for Honeywell M847D Zone U, M847D Zone Replacement, and many HVAC uses that need reliable zone control.
2. How to Install Honeywell M847D Zone Valve Actuator
To install the Honeywell M847D Zone Valve Actuator, follow these steps. Turn off the power to the system. Attach the actuator to the zone valve or zone damper body, like the M847D1004 Zone Damper. Align the coupling and secure it with screws or the locking mechanism.
Connect the control wiring as shown in the Honeywell wiring diagram, typically using 24V AC two-position connections. Verify all terminals are secure.
Once you finish, turn the power back on. Test the actuator by changing the thermostat. This will check if the valve or damper opens and closes correctly. Check for smooth motion and ensure there are no leaks around the valve or air duct connection.
3. Honeywell M847D Zone Adjustment
The Honeywell M847D Zone Adjustment procedure allows fine-tuning of system performance. Turn on the thermostat to open the Honeywell M847D Zone Valve Actuator or Honeywell M847D Zone Damper. Check that it works smoothly. Adjust the linkage or coupling if necessary to ensure complete valve or damper travel.
Check that each M847D Zone Honeywell or M847D Zone U responds accurately to temperature settings. Regular inspections keep things running well.
They prevent uneven heating or cooling. This also helps the Honeywell M847D Zone Motor last longer. Proper calibration of each M847D Zone Damper ensures optimal airflow or water flow across all controlled zones.
4. Specification
l Model: M847D
l Type: Spring-return zone valve/damper actuator
l Power Supply: 24 VAC, 50/60 Hz
l Power Consumption: Approximately 6.5 VA
l Control Type: On/Off (two-position)
l Drive Mechanism: Synchronous motor with spring return
l Torque Output: 44 in·lb (5 N·m) nominal
l Timing:
l Opening time: ~15 seconds
l Closing time (spring return): ~5 seconds
l Ambient Operating Temperature: 0°C to 60°C (32°F to 140°F)
l Housing Material: Durable plastic enclosure
l Mounting: Compatible with Honeywell V8043/V8044 series valves and open zone dampers
l Applications: Hydronic heating/cooling and zoned air control systems
l Features: Quiet operation, long service life, easy installation, and spring-return safety
5. Application
People also call the Honeywell M847D Zone Valve Actuator the Honeywell M847D Zone Damper Actuator. People use it to control hydronic and forced-air HVAC zoning systems. Perfect for homes, businesses, and light industrial uses.
This includes several heating systems. They are:
- Radiant floor heating
- Hot water baseboard systems
- Fan coil units
- Residential zone dampers, such as ARD, EARD, and ZD.
The M847D Zone Damper allows individual temperature control in multiple zones, improving comfort and energy efficiency. The spring-return fail-safe design allows the damper or valve to close automatically. This feature improves safety and reliability in Honeywell M847D Zone U and similar systems.
6. Related Part Numbers
The Honeywell M847D Zone Actuator and related components include:
V8043E1012 – 2-way sweat connection zone valve body
V8043F1036 – 2-way threaded connection zone valve body
V8044E1004 – 3-way sweat connection zone valve body
V8044F1029 – 3-way threaded connection zone valve body
40003916-026 – Replacement head/actuator assembly for M847D Zone Replacement
40003918-007 – Replacement motor for Honeywell M847D Zone Motor
40003916-030 – Actuator replacement with end switch
M847D1004 Zone Damper – Factory-configured zone damper actuator for Honeywell ZD Series
