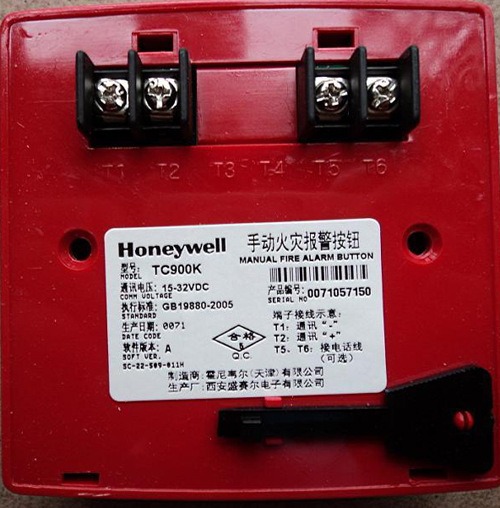

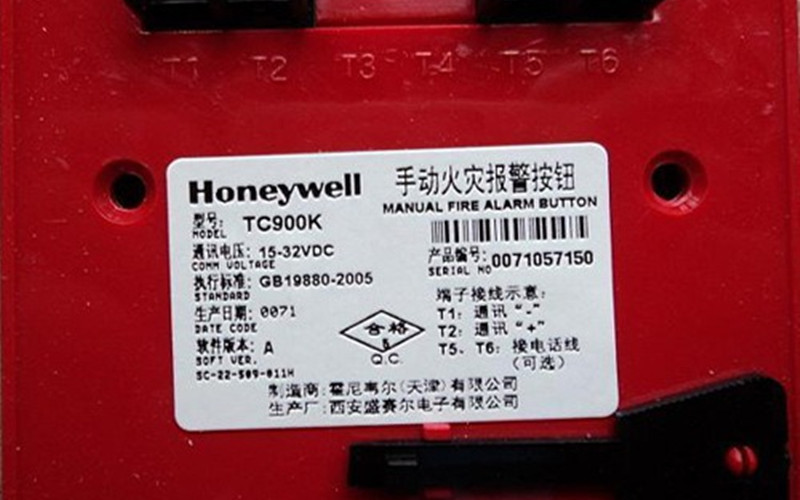

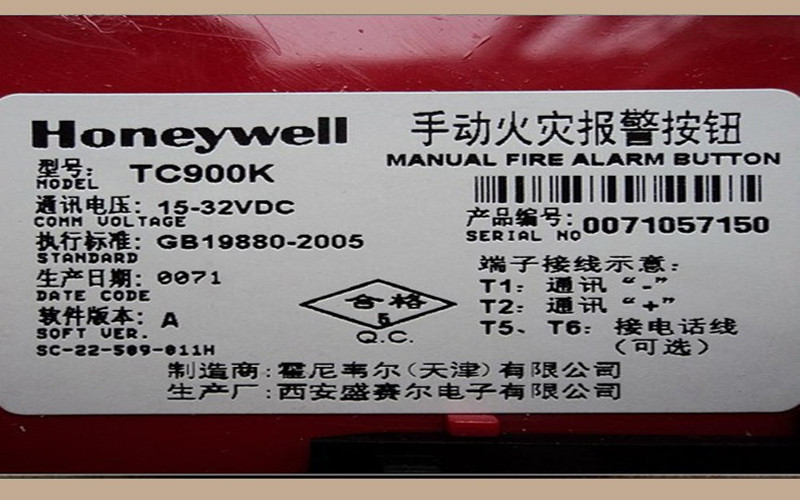

Honeywell TC900K Manual Fire Alarm Button and Monitoring Module
1.General Description
The Honeywell TC900K module includes the Honeywell TC900K manual fire alarm button and the Honeywell TC900K Monitoring Module. An important part of modern fire alarm systems exists.
This smart module provides precision and reliability. It monitors dry-contact devices like manual call points, flow switches, and supervisory controls. This ensures that all connected devices work correctly and efficiently.

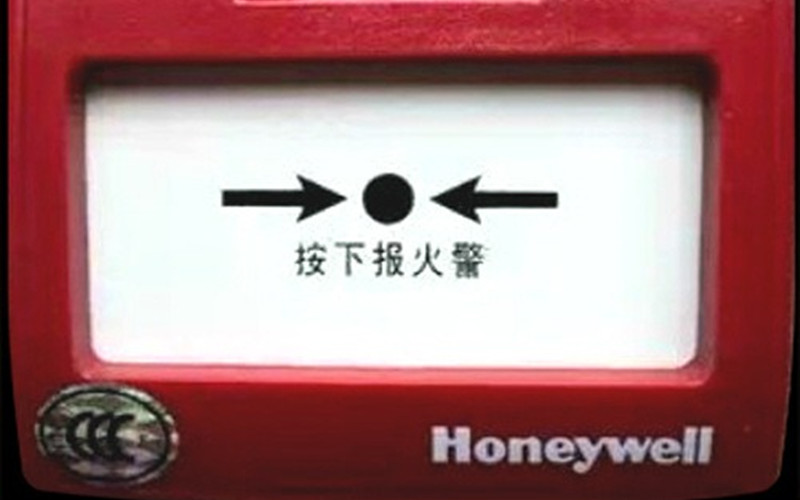

The Honeywell TC900K manual fire alarm button allows manual activation of an alarm signal during fire emergencies, providing immediate notification to the control panel. The module and manual alarm button work together to provide timely alerts and monitor faults. They are essential for any Honeywell fire detection network.
2.Technical Specifications
l Standard Operating Voltage: 15–32 VDC
l Maximum Current Draw: 5.1 mA (LED on)
l Average Operating Current: 475 μA (group poll), 450 μA (direct poll), 600 μA (maximum during communication)
l End-of-Line Resistance: 47 kΩ
l Maximum Loop Resistance: 1500 Ω
l Maximum Loop Voltage: 11 V
l Maximum Loop Current: 450 μA
l Operating Temperature Range: -10°C to 55°C (GB), 0°C to 49°C (UL)
l Operating Humidity Range: 10% to 95% RH (GB), 10% to 93% RH (UL), non-condensing
l Dimensions: 124.6 mm × 124.6 mm × 57.5 mm
l Standards Compliance: GB16806-2006 & UL864
l The Honeywell TC900K module meets strict international fire safety standards. It ensures high performance and works well with many Honeywell fire control panels and alarm systems.
3.Detailed Features
l The Honeywell TC900K module features advanced engineering for dependable performance:
l Two-Wire and Four-Wire Compatibility: Offers installation flexibility for varied system architectures.
l Decimal Coding Switch: Simplifies module address configuration, enhancing convenience for installers.
l LED Indicators: Panel-controlled dual LEDs provide real-time status visibility for easy monitoring and maintenance.
l Robust Monitoring Capabilities: Supports supervision of both normally open and normally closed dry-contact devices.
l The system can connect to the Honeywell TC900K manual fire alarm button.
l This connection allows for both automatic and manual fire detection. This ensures complete protection.
4.Applications of Honeywell TC900K
Many users widely utilise the Honeywell TC900K Monitoring Module and manual fire alarm button in commercial, industrial, and residential environments. Their versatility makes them ideal for a range of fire and safety applications:
l Fire Alarm Systems: These systems check devices like smoke detectors, heat detectors, and manual fire alarm buttons. They ensure these devices work well and send quick alerts for any problems.
l Security Systems: Supervises safety-related circuits requiring dependable performance and precise monitoring.
l Industrial Applications: Used in manufacturing plants and hazardous environments to oversee critical safety components and ensure immediate manual alarm activation when necessary.
l Public Facilities: Ensures safety compliance in high-occupancy areas such as schools, hospitals, and airports.
5.Installation
The designers created the Honeywell TC900K module for easy installation and maintenance. The integrated decimal coding switch allows for quick address setup.
To get the best performance, follow the Honeywell TC900K manual. Use the fire alarm button and module installation guidelines in the manufacturer’s manual. Always adhere to local and national fire protection standards (GB16806-2006 & UL864) for compliance and system integrity.
6.Related Part Numbers
l Honeywell TC900K1 Input Module
l Honeywell TC900K2 Output Module
Honeywell JTW-BD-TC808B1041CThermal Detectors
Honeywell JSM-TC809A1059C Input Monitoring Module
Honeywell FS24X-9 Flame Detector
Honeywell TC811A1006 Fault Isolator Module
