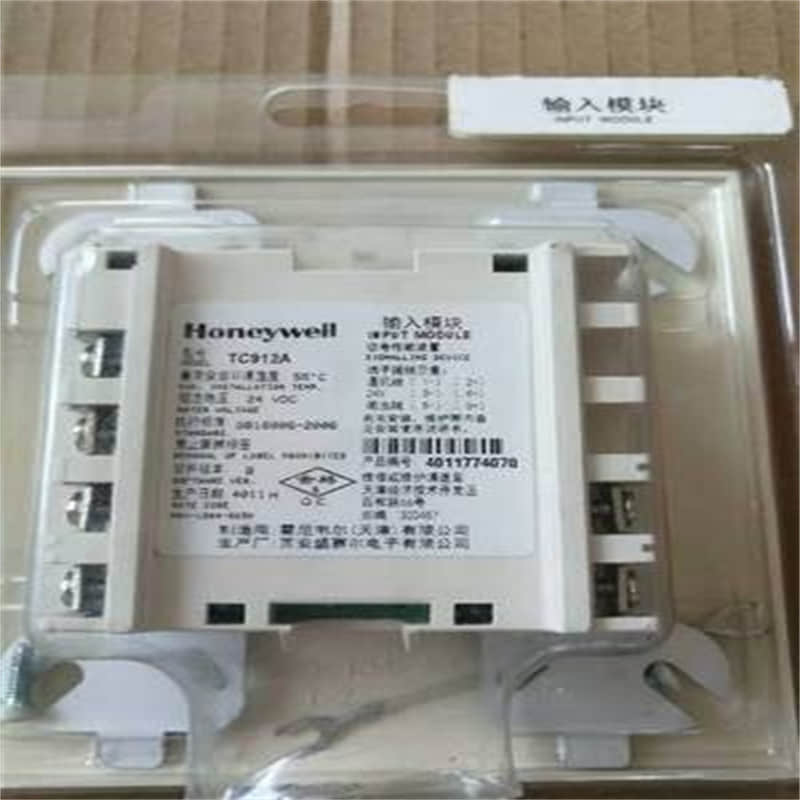

Honeywell TC912A Input Output Module

General Description

The Honeywell TC912A module is essential for enhancing the efficiency of HVAC systems and other automation processes.

Technical Specifications of Honeywell TC912A

l Model Number: TC912A

Operating Voltage: 15 to 32 VDC

l Maximum Current Draw: 5.1 mA (LED on)

l Average Operating Current: Variable based on configuration

l Signal Type: Digital and analog inputs/outputs

l Mounting Type: DIN rail or panel mount

Detailed Features

l Input/Output Channels: Supports multiple digital and analog channels for extensive connectivity.

l LED Indicators: Provide visual feedback for status monitoring.

l Robust Construction: Designed to withstand harsh environmental conditions.

l Flexible Configuration: Users can customize settings according to specific application needs.

l Enhanced Diagnostics: Built-in diagnostic features to troubleshoot issues quickly.

Applications

The Honeywell TC912A is widely used in various applications, including:

l HVAC Control Systems: Manages heating, ventilation, and air conditioning units for optimal climate control.

Industrial Automation: Integrates with sensors and actuators to automate manufacturing processes.

l Building Management Systems (BMS): Monitors and controls building operations, enhancing energy efficiency.

l Safety Systems: Interfaces with alarm systems to respond promptly to safety threats.

Installation of Honeywell TC912A

1. Preparation: Ensure all power sources are disconnected before installation.

2. Mounting: Secure the module onto a DIN rail or designated panel space.

3. Wiring Connections: Connect the input/output terminals as per the wiring diagram provided in the manual.

4. Power Up Reconnect power sources and verify that the LED status lights indicate that the module powers up correctly.

5. Configuration: Use compatible software to configure the module settings according to your application requirements.

Related Part Numbers of Honeywell TC912A

l TC910A1056C

l TC911A

l TC913

For more modules or part numbers, please refer to the following:

Honeywell JSM-TC809B1008C Micro Input Module

Honeywell TC911A1006 Isolation Module

Honeywell J-XAP-M-TC500H Commercial Thermostat

Honeywell TC841A1000 Regional Control Module
